CLASSIC P

CLAS P CL 11 W 230…240 V E27

GTIN: 4008321844217 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Brilliant light (CL clear version)
  • Reduced glare and softened shadows (FR frosted version)
Areas of application
  • Domestic applications
  • Shops, hotels and restaurants
  • Meeting rooms
  • Shopping centers
  • Luminaires with E27 or E14 screw holders (depending on version)
Product features
  • Non-oxidizing aluminum base
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.
Electrical data
Nominal wattage 11 W
Construction wattage 11.00 W
Nominal voltage 230…240 V
Photometrical data
Luminous flux 50 lm
Luminous efficacy 4 lm/W
Color temperature 2700 K
Light color 27
Light technical data
Starting time 0 s
Dimensions & Weight
Overall length 74.00 mm
Diameter 45,0 mm
Product weight 20.00 g
Additional product data
Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Capabilities
Dimmable Yes
Country-specific categorizations
ILCOS IBP/C-11-235-E14-45
Order reference CLAS P CL 11W 2
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E27
Length 72.00 mm
Height 45,0 mm
Width 45,0 mm
EPREL ID 714460
Model number AA79271
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321844217 Folding box
1		 44 mm x 44 mm x 77 mm 25.00 g 0.15 dm³
4008321844224 Shipping box
20		 184 mm x 224 mm x 85 mm 605.00 g 3.50 dm³
On-Pack-Info
ELR - exempt lamps
PDF (1.88 MB)
Declarations of conformity
GLS CLAS 11W
PDF (148.1 KB)
Product datasheet -> old version of product
CLASPCL11W230…240VE2 7en
PDF (0 B)
Product image: white background, diagonal
324417_CLASSIC P E27
TIF (21.43 MB)
Product line drawing with letters
49_CLASSIC P-BULB/DROP SHAPE E27
SVG (10.35 KB)
Combo Shot = Product Beauty Shot + Packaging Image
CLP CL 11W E27
JPG (1.35 MB)

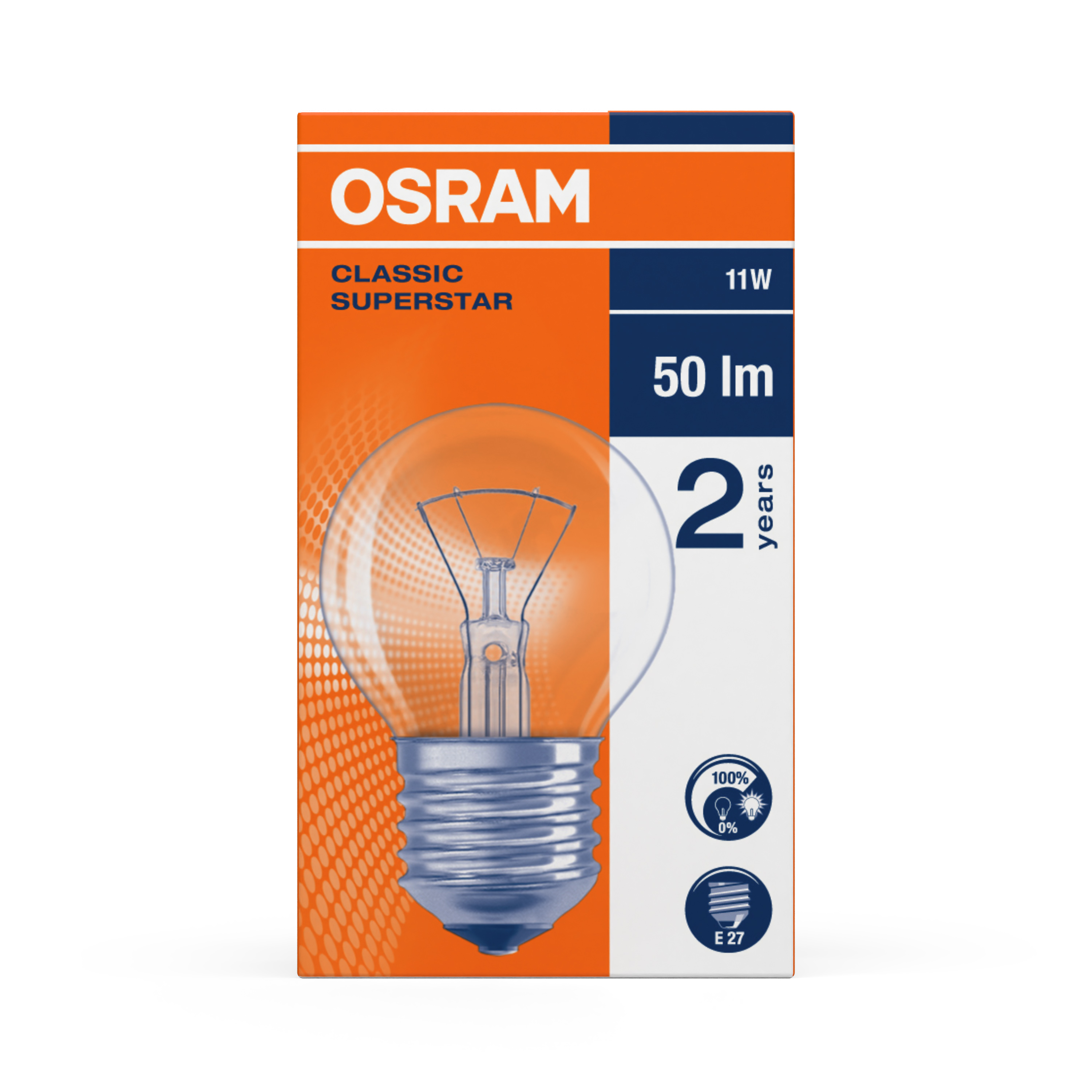

Packaging image, frontal
CLASSIC SUPERSTAR P 11W E27 MiCh Front
TIF (1.06 MB)

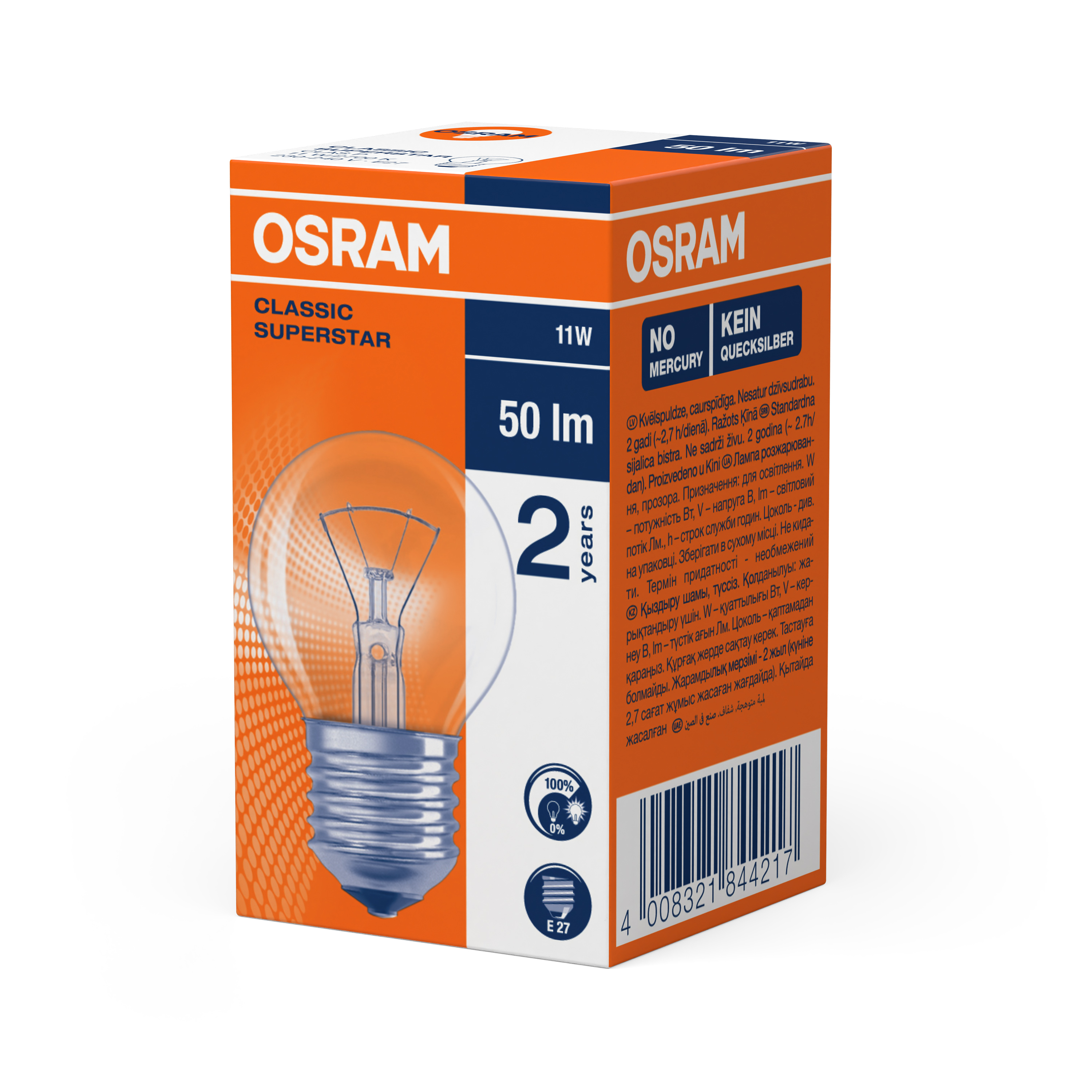

Packaging image, spacial
CLASSIC SUPERSTAR P 11W E27 MiCh Side
TIF (1.46 MB)
EAN SEG number EFO number
4008321844217 8325009 3710370
