LED Retrofit CLASSIC A
LED Star Classic A 40
GTIN: MP_4058075437241
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Lamps with innovative LED "filament" technology
- Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
- Lower energy consumption than incandescent or halogen lamps
- No UV and near-IR radiation in the light beam
- Instant 100 % light, no warm-up time
Areas of application
- Perfect for decorative installations
- Domestic applications
- General illumination
- Outdoor use in suitable outdoor luminaires only
Product features
- Professional LED lamps for line voltage
- Not dimmable
- Lifetime up to 15,000 h
- Beam angle: up to 300°
- Lamp made of glass
- Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Electrical data
| Construction wattage | 4.00 W |
| Type of current | AC |
| Inrush current | 1.5 A |
| Operating frequency | 50/60 Hz |
| Max. lamp number on MCB B10 A | 400 |
| Max. lamp number on MCB B16 A | 480 |
Photometrical data
| Nominal useful luminous flux 90° | 470 lm |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Rated LLMF at 6,000 h | 0.80 |
| Flickering metric (Pst LM) | 1.0 |
| Stroboscope effect metric (SVM) | ≤0.4 |
Light technical data
| Warm-up time (60 %) | ‹ 0.50 s |
Dimensions & Weight
| Overall length | 104.00 mm |
| Maximum diameter | 60 mm |
Temperatures & operating conditions
| Maximum temperature at tc test point | 65 °C |
Lifespan
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Frosted |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Certificates & Standards
| Energy consumption | 4.00 kWh/1000h |
| Standards | CE, EAC |
Country-specific categorizations
| ILCOS | DRAA/F-4/827-220/240-B22d-60 |
LOGISTICAL DATA
| Temperature range at storage | -20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Standby power | 0 W |
| Networked standby power for CLS | 0 W |
| Claim of equivalent power | Yes |
| Chromaticity coordinate x | 0.463 |
| Chromaticity coordinate y | 0.420 |
| R9 Colour rendering index | 1 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.90 |
| Displacement factor | 0.40 |
| LED light source replaces a fluorescent light source | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|
Declarations of conformity
LED lamps CLA,B,G,P
LED lamps CLA,B,G,P
PRODUCT DATASHEET
LED STAR CL A GL FR 40 non-dim 4W/827 B22d
LED STAR CL A GL FR 40 non-dim 4W/827 B22d
PRODUCT DATASHEET
STCLASA404W2700KB22den
STCLASA404W2700KB22den
Product image: white background, diagonal
Classic A GLFR B22d
Classic A GLFR B22d
Product image: white background, upright
Classic A GLFR B22d
Classic A GLFR B22d
Product line drawing with letters
328068_CLASSIC A B22d FROSTED
328068_CLASSIC A B22d FROSTED
Product line drawing with numbers
LED CLASSIC A60 GLFR B22D
LED CLASSIC A60 GLFR B22D
Product line drawing, front, no dimensions
328069_CLASSIC A B22d FROSTED
328069_CLASSIC A B22d FROSTED

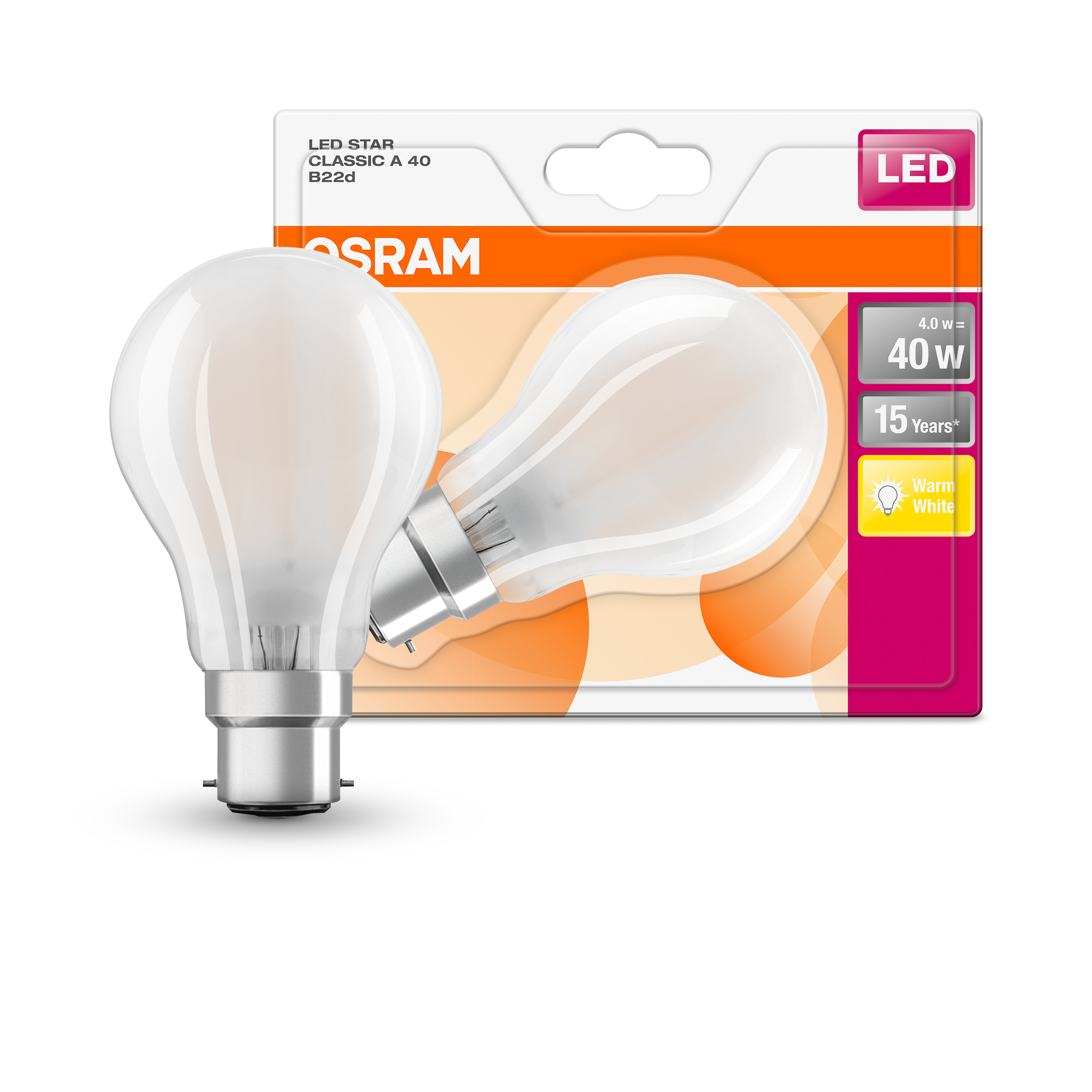

Combo Shot = Product Beauty Shot + Packaging Image
LEDSCLA40 4W-827 230VGLFRB22D6XBLI1
LEDSCLA40 4W-827 230VGLFRB22D6XBLI1

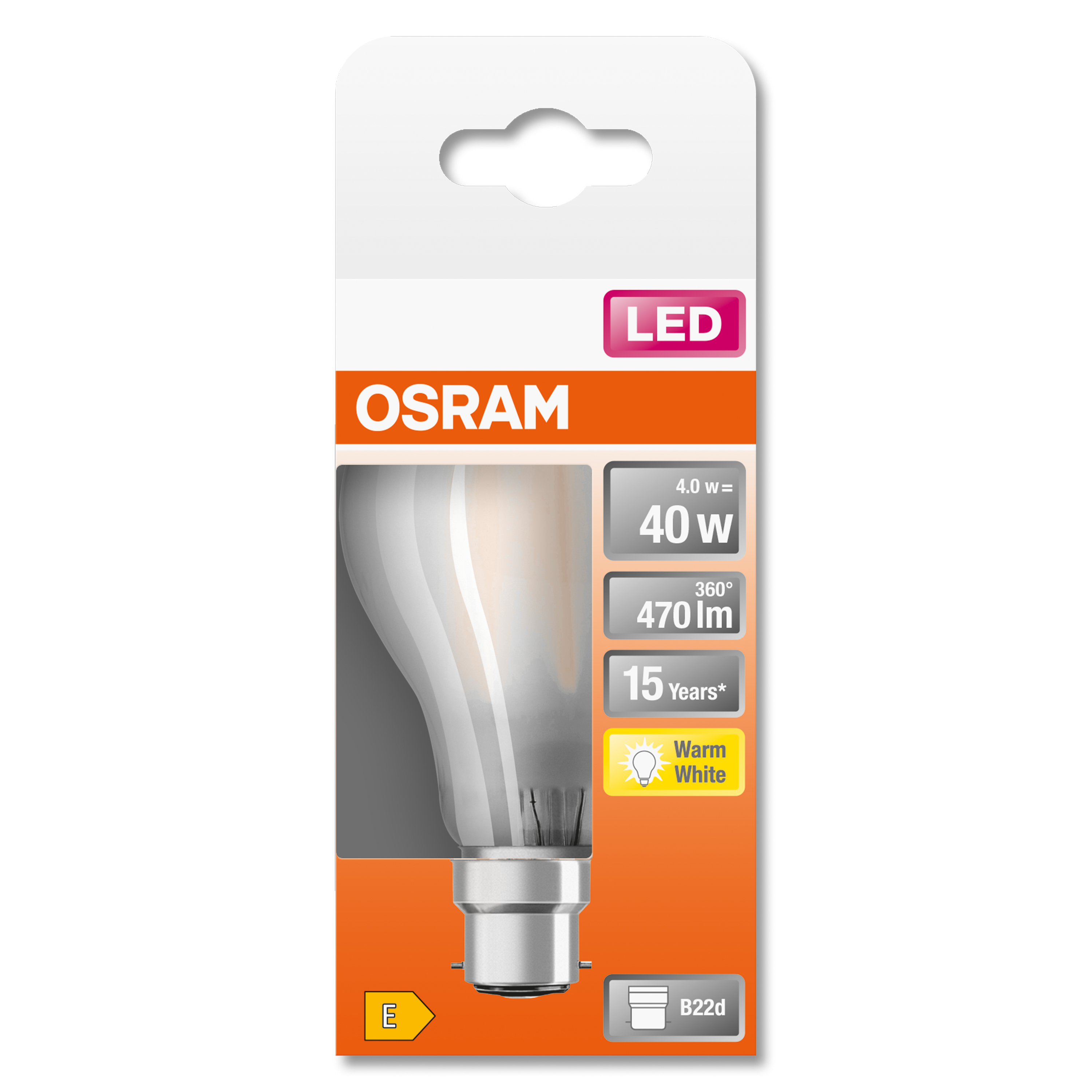

Packaging image, frontal
LED ST CLA 40 4W 827 FR B22d MiCh
LED ST CLA 40 4W 827 FR B22d MiCh
Packaging image, frontal
LED ST CLA 40 4W 827 FR B22d MiCh Front
LED ST CLA 40 4W 827 FR B22d MiCh Front

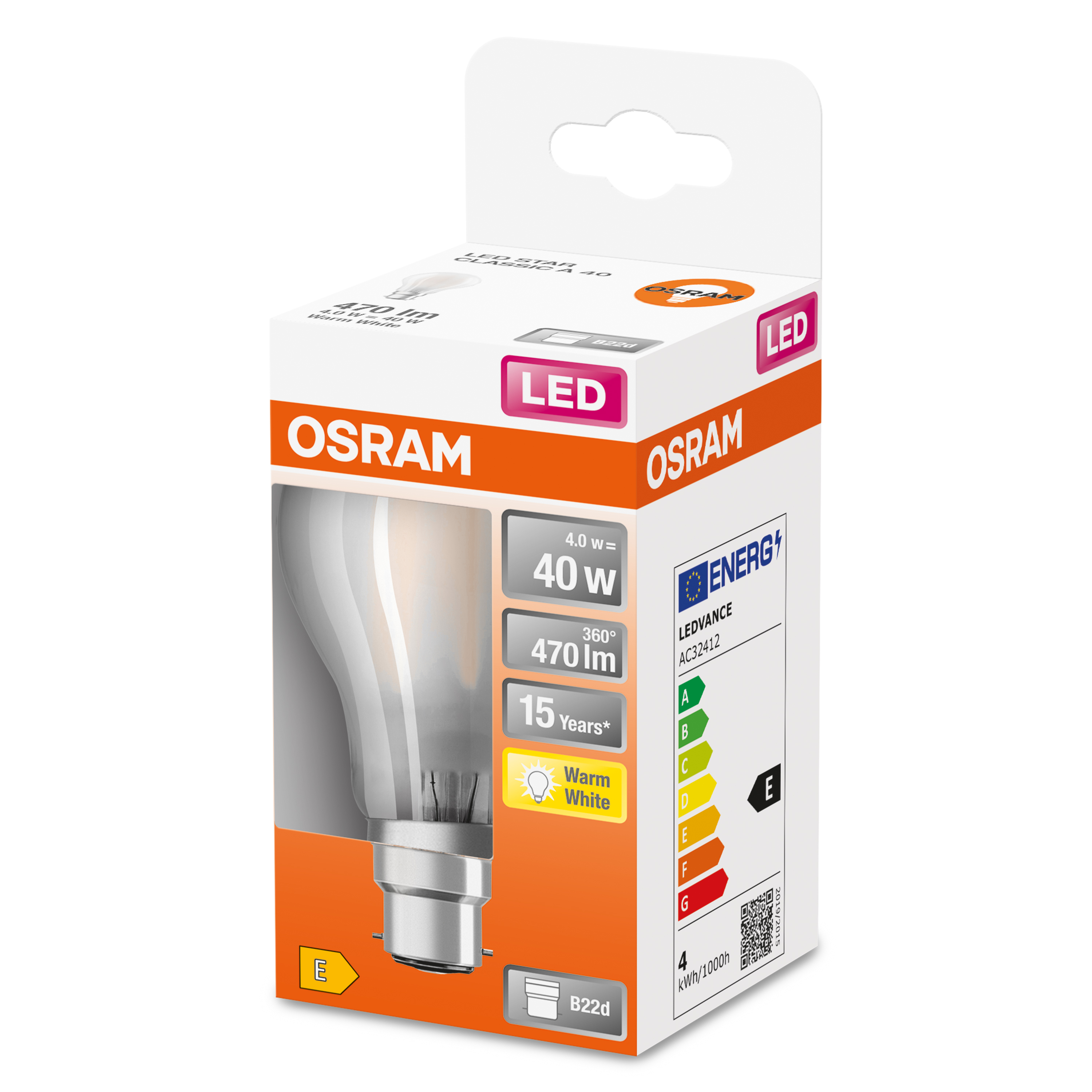

Packaging image, spacial
LED ST CLA 40 4W 827 FR B22d MiCh
LED ST CLA 40 4W 827 FR B22d MiCh
Energy label
EL-4058075437241-AC324 12
EL-4058075437241-AC324 12
Energy label
EL-4058075437241-AC243 54
EL-4058075437241-AC243 54
Energy label
EL-4058075808577-AC243 54
EL-4058075808577-AC243 54
Spectral power distribution
EPREL data spectral diagram PROF LEDr 2700K
EPREL data spectral diagram PROF LEDr 2700K
