KIT LEDr GU10
RECESS GU10 8.3W CRI90 3000K DIM
GTIN: 4058075607415
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Direct replacement for conventional 80 W halogen luminaires
- Energy savings of up to 90 % compared to conventional recessed luminaires
- Single spot optics
- White die-cast zinc alloy ring
- Replaceable LED lamp
Areas of application
- Corridors
- Shop lighting
- Living rooms
- Foyers
Product features
- Luminous flux: up to 575 lm
- Beam angle: 36°
- Spot can be swiveld 20° into all directions
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 8.30 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 46 mA |
| Power factor λ | 0.70 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
Photometrical data
| Luminous flux | 575 lm |
| Total luminous flux of contained light sources | 575 lm |
| Luminous efficacy | 69 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | 90 |
| Standard deviation of color matching | 5 sdcm |
| Luminous intensity | - |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 36 ° |
Dimensions & Weight
| Diameter | 88.50 mm |
| Height | 112.00 mm |
| Product weight | 184.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Screw terminal, 2-Pole (L,N) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | Yes |
| Type of dimming | LEA/TR.EDG |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 75,0 mm |
| With light source | Yes |
| Replaceable light source | No |
| Holder designation | GU10 |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
Additional product data
| Number of illuminants | 1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075607415 | Folding box 1 |
150 mm x 95 mm x 85 mm | 215.00 g | 1.21 dm³ |
| 4058075607422 | Shipping box 6 |
481 mm x 212 mm x 123 mm | 1463.00 g | 12.54 dm³ |
User instruction / safety instructions
SP KIT ADJ V 8.3W
SP KIT ADJ V 8.3W
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
SP KIT ADJ GU10 DIM
SP KIT ADJ GU10 DIM
Product image: white background, diagonal
SPOT KIT ADJUST
SPOT KIT ADJUST
Product image: white background, horizontal
SPOT KIT ADJUST
SPOT KIT ADJUST
Product line drawing with letters
SPOT KIT ADJUST
SPOT KIT ADJUST
Product line drawing with numbers
SPOT KIT ADJUST
SPOT KIT ADJUST
Product line drawing - technical
SPOT KIT ADJUST
SPOT KIT ADJUST

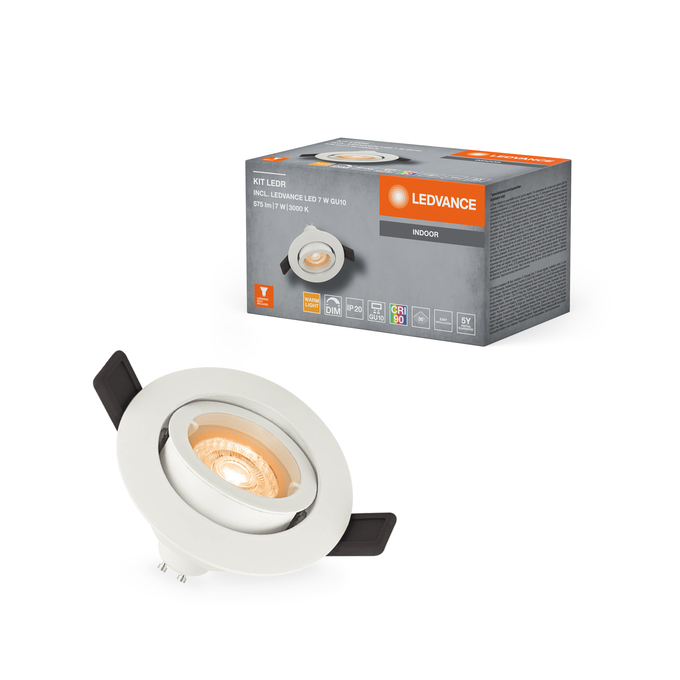

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC SPKIT ADJ 7 930 GU10 DIM
LUM FC SPKIT ADJ 7 930 GU10 DIM
Packaging image, frontal
LUM FC SPKIT ADJ 7 930 GU10 DIM
LUM FC SPKIT ADJ 7 930 GU10 DIM
Packaging image, spacial
LUM FC SPKIT ADJ 7 930 GU10 DIM
LUM FC SPKIT ADJ 7 930 GU10 DIM
Tender documents
KIT LEDr GU10 8.3W CRI90 3000K DIM-en
KIT LEDr GU10 8.3W CRI90 3000K DIM-en
| EAN | STK number |
|---|---|
| 4058075607415 | 4127223 |
