HALOLINE Standard
HALOLINE 1500 W 230 V R7S
GTIN: 4050300004181
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Brilliant accent light
- No transformer required
- Contains no mercury
Areas of application
- Ideal for emphasizing and accentuating buildings
- General illumination
- Entrance lighting
- Pathway lighting
- Garden lighting
- Traffic areas
- Shops
- Restaurants, hotels and similar prestigious applications
- Outdoor applications only in suitable luminaires
Product features
- Average life: 2,000 h
- 100 % dimmable
- Color rendering index Ra: 100
- Color temperature: 3,000 K
- Burning position: p15
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
- Lamp to be used only in a closed luminaire.
- Not designed as a replacement for conventional lighting in private household.
Electrical data
| Nominal wattage | 1500.00 W |
| Construction wattage | 1500.00 W |
| Nominal voltage | 230 V |
Photometrical data
| Luminous flux | 31000 lm |
| Luminous efficacy | 20 lm/W |
| Light color (designation) | Warm White |
| Color temperature | 3000 K |
| Color rendering index Ra | 100 |
| Light color | 1030 |
| UV protection | No |
Light technical data
| Starting time | 0 s |
Dimensions & Weight
| Overall length | 254.00 mm |
| Diameter | 12 mm |
| Product weight | 18.5 g |
Additional product data
| Base (standard designation) | R7s |
| Mercury-free | Yes |
| Design / version | Tube |
| Product remark | Fuse protection with indicated values recommended acc. to IEC60357, EN60357, For outdoor applications and operation in damp locations special approved fixtures are required |
Capabilities
| Dimmable | Yes |
| Burning position | p15 |
Certificates & Standards
| Energy efficiency class | G |
| Energy consumption | 1500.00 kWh/1000h |
Country-specific categorizations
| ILCOS | HDG-1500-230-R7s-256,1 |
| Order reference | 64760 1500W 230 |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | OTHER |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | R7s |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Claim of equivalent power | No |
| Length | 254.00 mm |
| Height | 12 mm |
| Width | 12 mm |
| Chromaticity coordinate x | 0.444 |
| Chromaticity coordinate y | 0.406 |
| Beam angle correspondence | SPHERE_360 |
| EPREL ID | 714419,1635410 |
| Model number | AC35335,AC54069 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4050300004181 | Folding box 1 |
26 mm x 26 mm x 303 mm | 27.50 g | 0.20 dm³ |
| 4050300209128 | Shipping box 12 |
311 mm x 114 mm x 91 mm | 400.00 g | 3.23 dm³ |
Declarations of conformity
Traditional lamp
Traditional lamp
Declarations of conformity
CE Declaration R7s
CE Declaration R7s
Product datasheet -> old version of product
HALOLINE1500W230VR7Sen
HALOLINE1500W230VR7Sen
Product image: white background, diagonal
324591_HALOLINE FOR MAINS VOLTAGE
324591_HALOLINE FOR MAINS VOLTAGE
Product line drawing with letters
620_HALOLINE
620_HALOLINE
Product line drawing, front, no dimensions
325064_HALOLINE FOR POWER SUPPLY VOLTAGE
325064_HALOLINE FOR POWER SUPPLY VOLTAGE

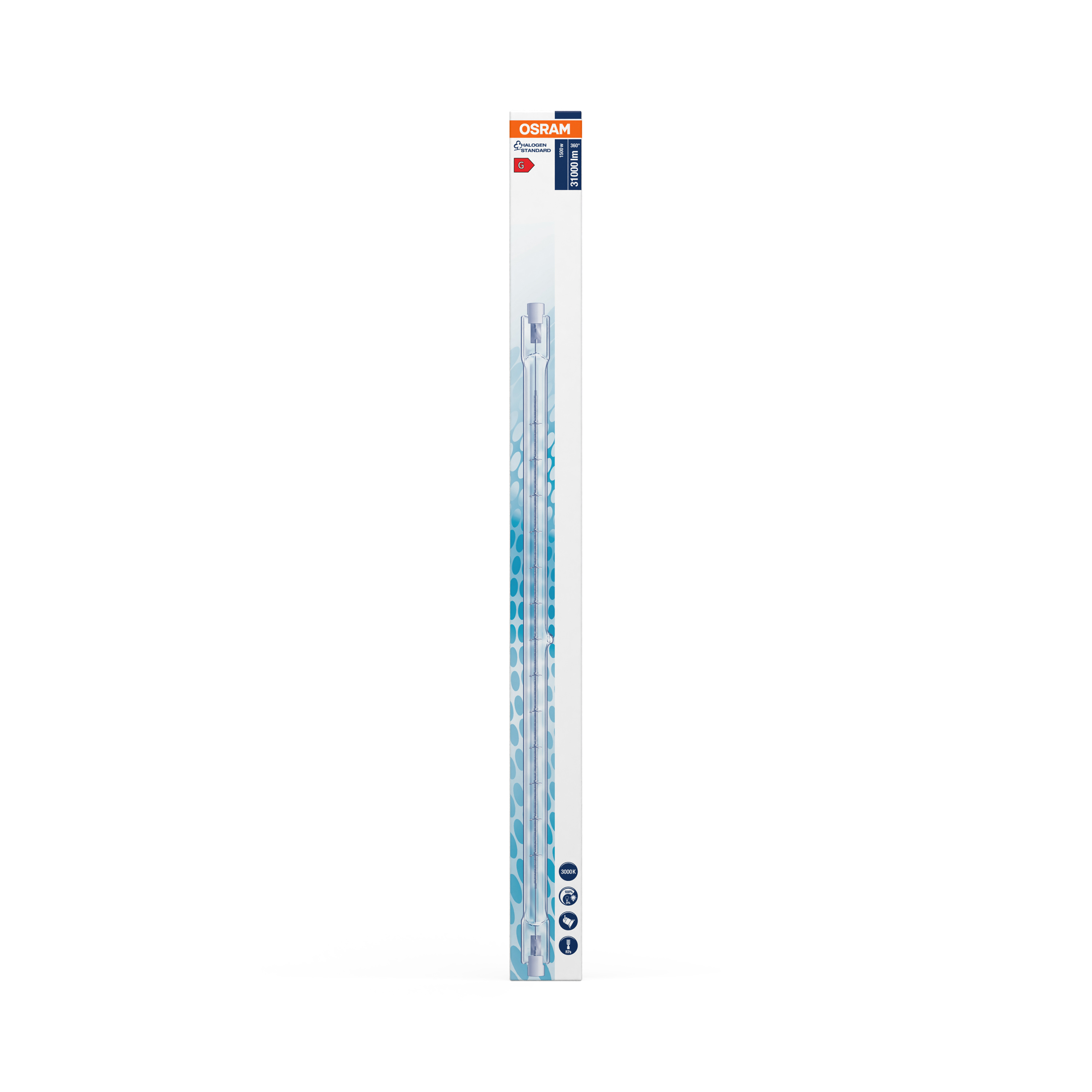

Packaging image, frontal
U1 HALOLINE 64760 1500W 230V R7s MiG Front
U1 HALOLINE 64760 1500W 230V R7s MiG Front

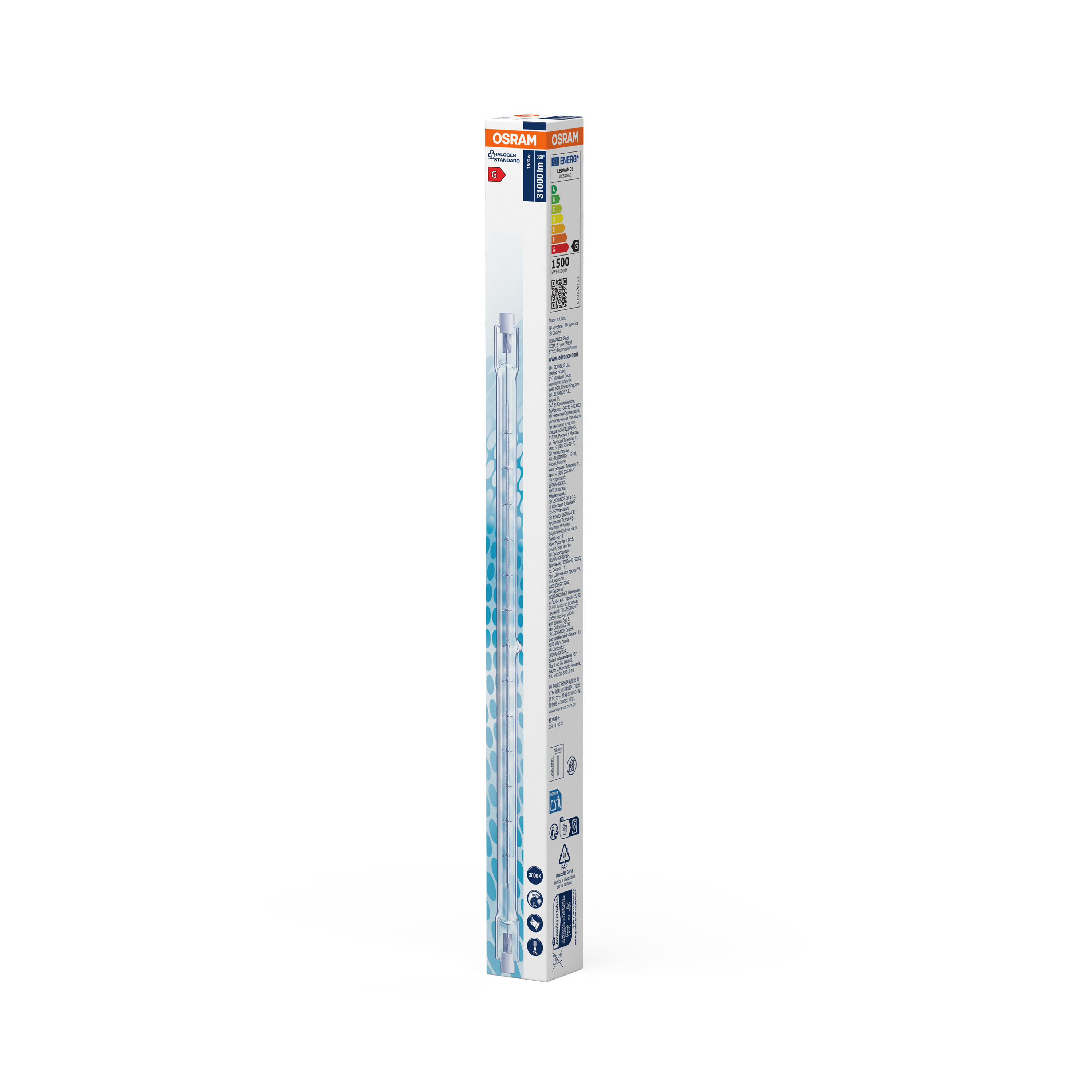

Packaging image, spacial
U1 HALOLINE 64760 1500W 230V R7s MiG Side
U1 HALOLINE 64760 1500W 230V R7s MiG Side
Energy label
EL-4050300004181-AC353 35
EL-4050300004181-AC353 35
Energy label
EL-4050300004181-AC540 69
EL-4050300004181-AC540 69
Spectral power distribution
349635_HAL_ohne_UVS
349635_HAL_ohne_UVS
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4050300004181 | 8327706 | 4730119 | 3720036 | 940306078 |
