HALOPIN PRO

HALOPIN PRO 35 W 230 V G9

GTIN: 4008321208668 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Brilliant accent lighting
  • Incredibly small dimensions for revolutionary new luminaire designs
  • Robust filament design thanks to innovative, unique bulb pinch technology
  • Approved for use in open luminaires (to IEC 60598-1)
  • UV filter
  • Complies with IEC 60432-2 thanks to integrated fuse function
  • Lower thermal output (compared with the standard reference product)
  • The lamp shuts down reliably
  • Contains no mercury
Areas of application
  • General illumination
  • Workplace lighting
  • Lighting for reading
  • Dining table lighting
  • Mirror lighting
  • Accent lighting
  • Mood lighting
Product features
  • Average life: 2,000 h
  • Dimmable
  • Color rendering index Ra: 100
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.
Electrical data
Nominal wattage 35 W
Construction wattage 35.00 W
Nominal voltage 230 V
Claimed equiv. conventional lamp power 40 W
Photometrical data
Luminous flux 460 lm
Luminous efficacy 13 lm/W
Light color (designation) Warm White
Color temperature 2800 K
Color rendering index Ra 100
Light color 1028
Light technical data
Starting time 0.0 s
Dimensions & Weight
Overall length 43.00 mm
Light center length (LCL) 22,0 mm
Diameter 14,0 mm
Product weight 2.9 g
Lifespan
Number of switching cycles 50000
Additional product data
Base (standard designation) G9
Mercury-free Yes
Design / version Tube
Capabilities
Dimmable Yes
Burning position Any
Certificates & Standards
Energy efficiency class G
Energy consumption 35.00 kWh/1000h
Country-specific categorizations
ILCOS HSGST/C/UB-33-230-G9-22
Order reference 66733 ECO
Energy labelling regulation data acc EU 2019/2015
Lighting technology used OTHER
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G9
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 43.00 mm
Height 14,0 mm
Width 14,0 mm
Chromaticity coordinate x 0.452
Chromaticity coordinate y 0.409
Beam angle correspondence SPHERE_360
EPREL ID 1498551,714427
Model number AC35305,A52042A
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321208668 Folding box
1		 70 mm x 23 mm x 25 mm 6.29 g 0.04 dm³
4052899262539 Bundle
10
4058075308152 Bundle
2		 23 mm x 50 mm x 70 mm 10.00 g 0.08 dm³
4008321208675 Shipping box
20		 144 mm x 64 mm x 118 mm 136.00 g 1.09 dm³
4052899262546 Shipping box
200		 485 mm x 137 mm x 154 mm 1202.00 g 10.23 dm³
4058075308169 Shipping box
16		 192 mm x 59 mm x 80 mm 122.00 g 0.91 dm³
4058075308176 Shipping box
192		 366 mm x 201 mm x 176 mm 1630.00 g 12.95 dm³
Declarations of conformity
HAL G9
PDF (151.08 KB)
Product image: white background, diagonal
324594_HALOPIN COMPACT CLEAR
TIF (5.44 MB)
Product line drawing with letters
36218_HALOPIN CLEAR WITH BASE G9
SVG (9.92 KB)
Product line drawing, front, no dimensions
40665_HALOPIN
SVG (5.17 KB)

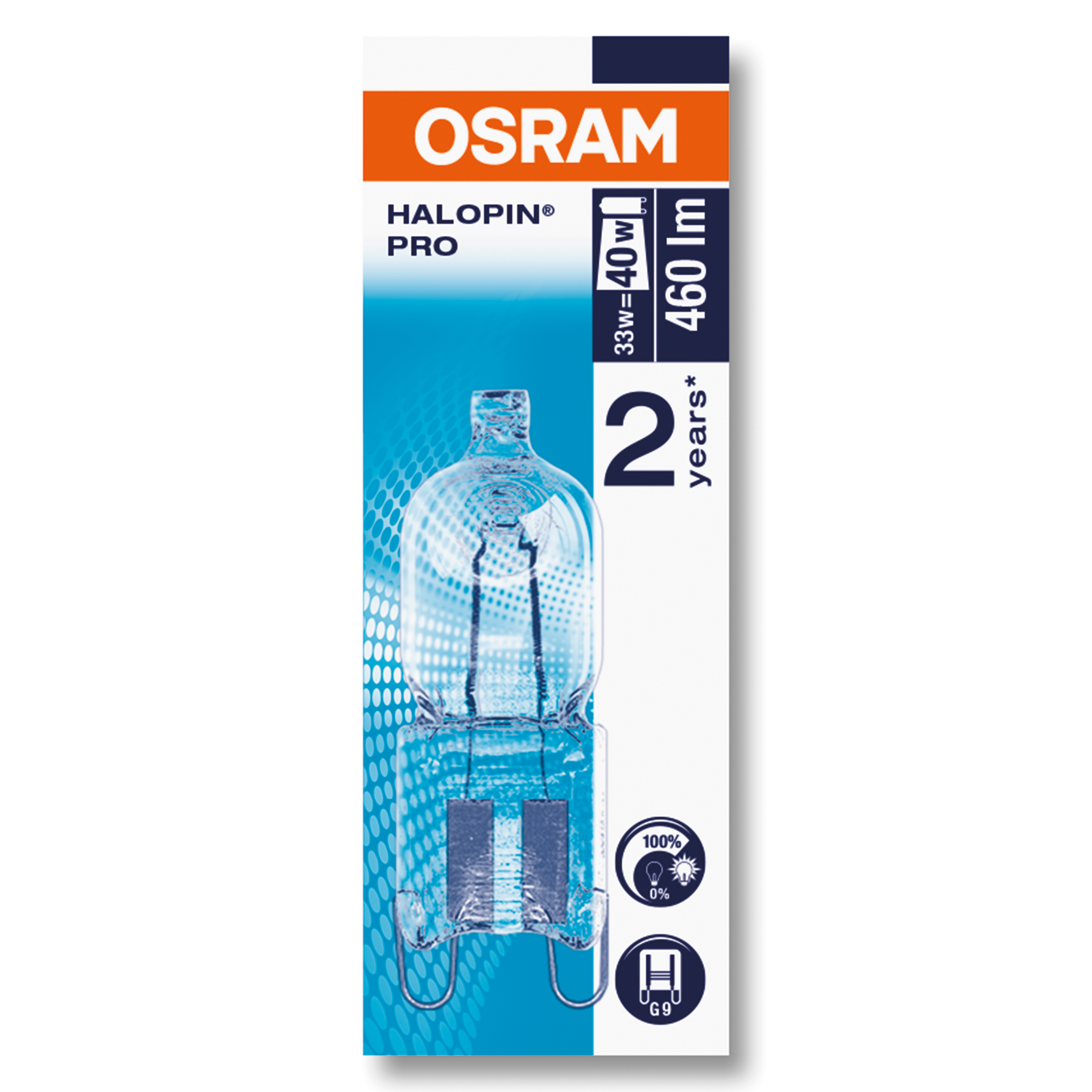

Packaging image, frontal
U3 HALOPIN PRO 66733 35W 230V G9 MiG
JPG (2.16 MB)

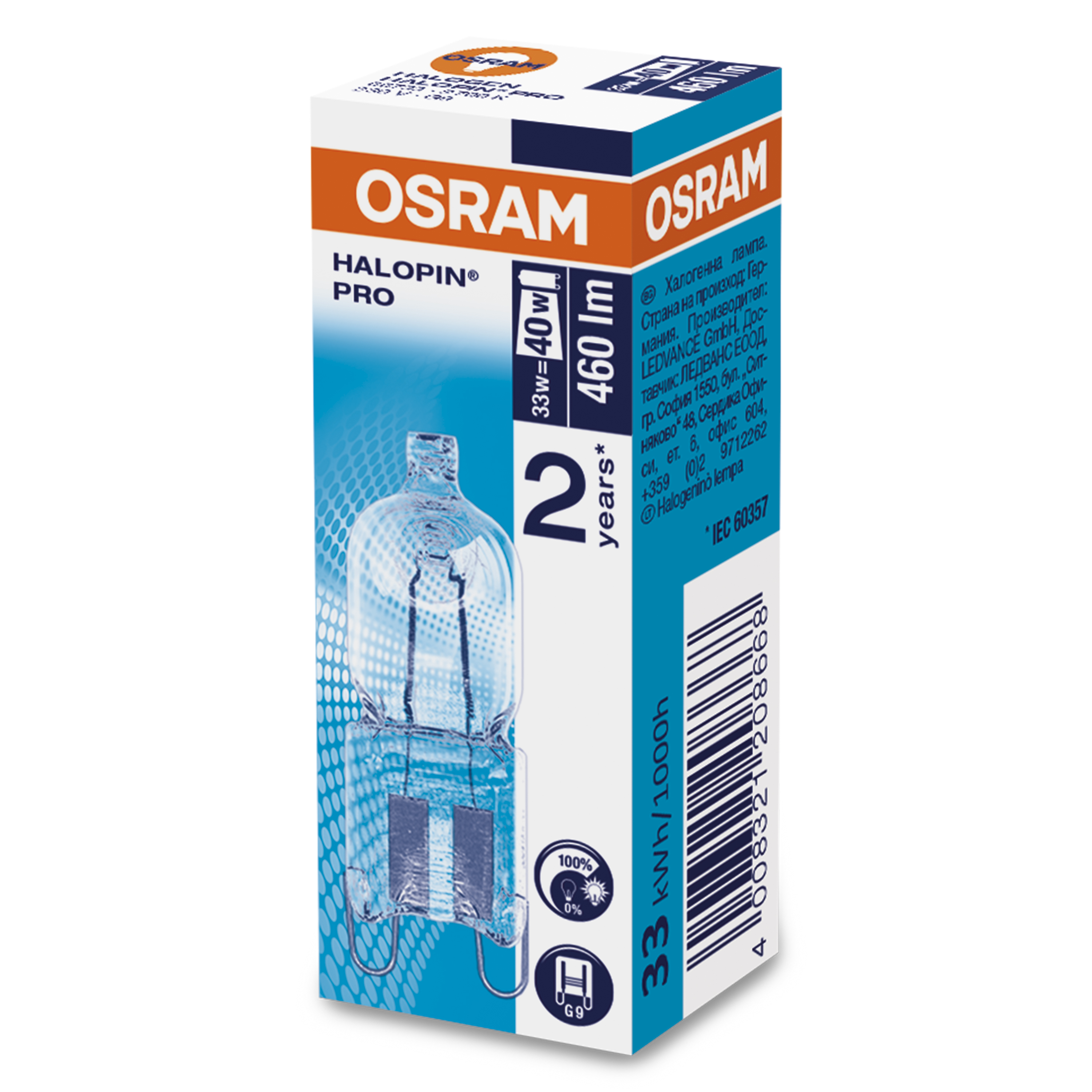

Packaging image, spacial
