HALOPIN PRO
HALOPIN PRO 20 W 230 V G9
GTIN: 4008321945273
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Brilliant accent lighting
- Incredibly small dimensions for revolutionary new luminaire designs
- Robust filament design thanks to innovative, unique bulb pinch technology
- Approved for use in open luminaires (to IEC 60598-1)
- UV filter
- Complies with IEC 60432-2 thanks to integrated fuse function
- Lower thermal output (compared with the standard reference product)
- The lamp shuts down reliably
- Contains no mercury
Areas of application
- General illumination
- Workplace lighting
- Lighting for reading
- Dining table lighting
- Mirror lighting
- Accent lighting
- Mood lighting
Product features
- Average life: 2,000 h
- Dimmable
- Color rendering index Ra: 100
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
- Lamp to be used only in a closed luminaire.
Electrical data
| Nominal wattage | 20 W |
| Construction wattage | 20.00 W |
| Nominal voltage | 230 V |
| Claimed equiv. conventional lamp power | 25 W |
Photometrical data
| Luminous flux | 235 lm |
| Luminous efficacy | 11 lm/W |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | 100 |
| Light color | 1027 |
Light technical data
| Starting time | 0.0 s |
Dimensions & Weight
| Overall length | 43.00 mm |
| Light center length (LCL) | 22,0 mm |
| Diameter | 14.00 mm |
| Product weight | 2.9 g |
Lifespan
| Number of switching cycles | 50000 |
Additional product data
| Base (standard designation) | G9 |
| Mercury-free | Yes |
| Design / version | Tube |
Capabilities
| Dimmable | Yes |
| Burning position | Any |
Certificates & Standards
| Energy efficiency class | G |
| Energy consumption | 20.00 kWh/1000h |
Country-specific categorizations
| ILCOS | HSGST/C/UB-20-230-G9-22 |
| Order reference | 66720 ECO |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | OTHER |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | G9 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Claim of equivalent power | No |
| Length | 43.00 mm |
| Height | 14.00 mm |
| Width | 14.00 mm |
| Chromaticity coordinate x | 0.460 |
| Chromaticity coordinate y | 0.411 |
| Beam angle correspondence | SPHERE_360 |
| EPREL ID | 714449 |
| Model number | AC35304 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4008321945273 | Folding box 1 |
70 mm x 23 mm x 25 mm | 6.00 g | 0.04 dm³ |
| 4052899262553 | Bundle 10 |
|||
| 4058075308183 | Bundle 2 |
23 mm x 50 mm x 70 mm | 10.00 g | 0.08 dm³ |
| 4008321945280 | Shipping box 20 |
144 mm x 55 mm x 118 mm | 126.00 g | 0.93 dm³ |
| 4052899262560 | Shipping box 200 |
485 mm x 137 mm x 154 mm | 1195.00 g | 10.23 dm³ |
| 4058075308190 | Shipping box 16 |
192 mm x 59 mm x 80 mm | 122.00 g | 0.91 dm³ |
| 4058075308206 | Shipping box 192 |
366 mm x 201 mm x 176 mm | 1630.00 g | 12.95 dm³ |
Declarations of conformity
HAL G9
HAL G9
Product image: white background, diagonal
324594_HALOPIN COMPACT CLEAR
324594_HALOPIN COMPACT CLEAR
Product line drawing with letters
36218_HALOPIN CLEAR WITH BASE G9
36218_HALOPIN CLEAR WITH BASE G9
Product line drawing, front, no dimensions
40665_HALOPIN
40665_HALOPIN

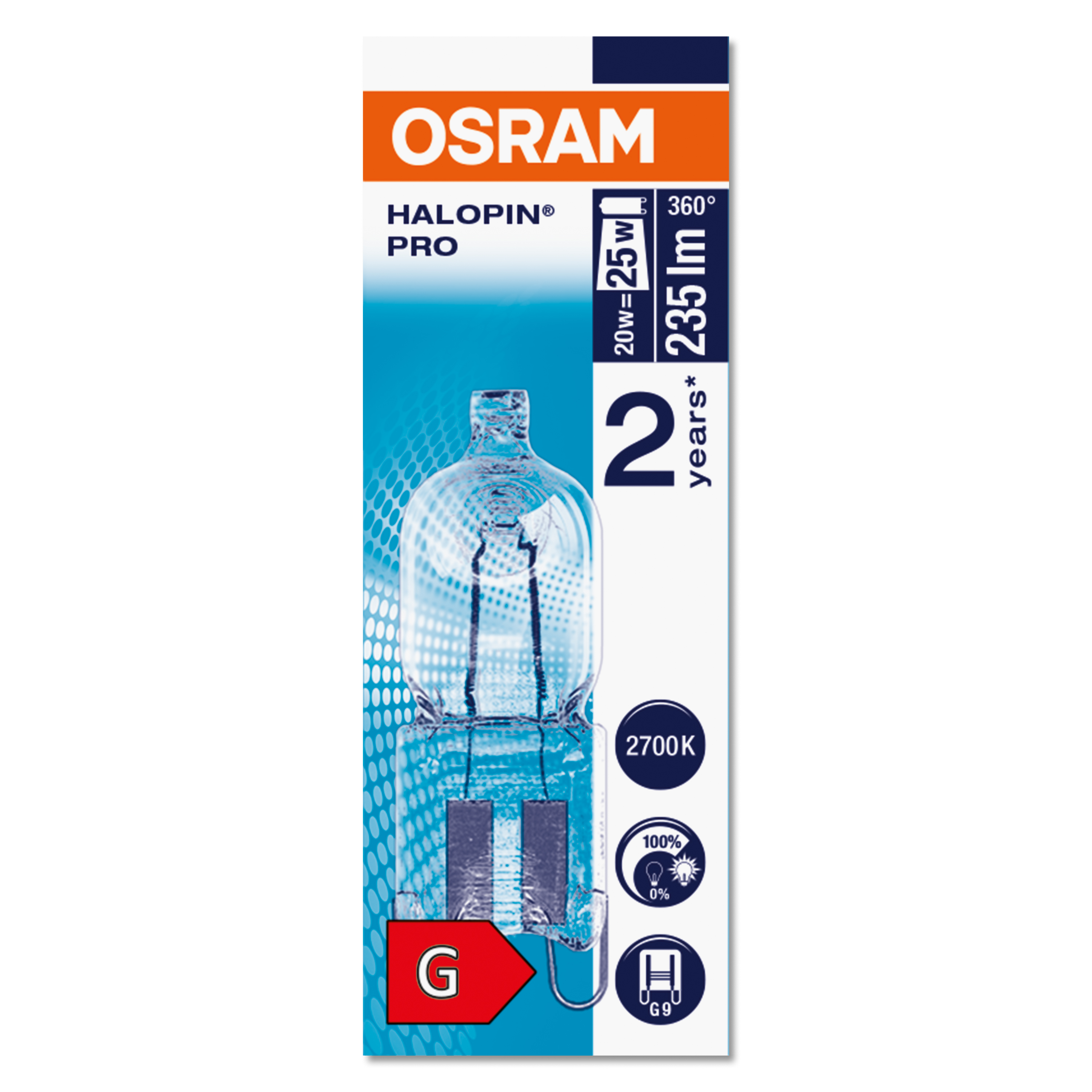

Packaging image, frontal
U3 HALOPIN PRO 66720 20W 230V G9 MiG
U3 HALOPIN PRO 66720 20W 230V G9 MiG

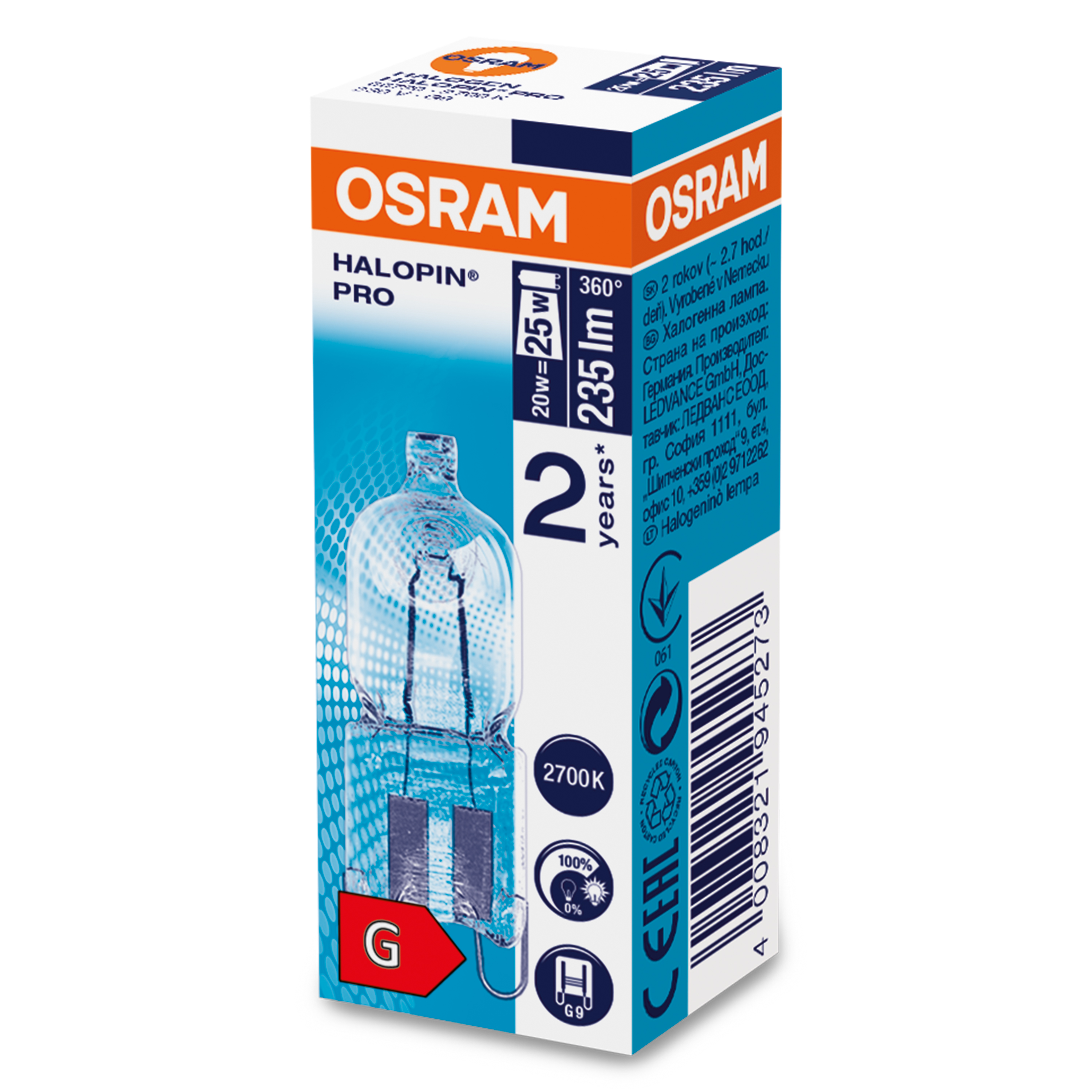

Packaging image, spacial
U3 HALOPIN PRO 66720 20W 230V G9 MiG
U3 HALOPIN PRO 66720 20W 230V G9 MiG
Energy label
EL-4008321945273-AC353 04
EL-4008321945273-AC353 04
Spectral power distribution
349631_HAL_HV_UVS
349631_HAL_HV_UVS
| EAN | SEG number | STK number | ELDAS number |
|---|---|---|---|
| 4008321945273 | 8327421 | 4730109 | 940318471 |
