POWERSTAR HQI-T 1000…2000 W

HQI-T 2000 W/D/I

Model Number: OSRHQI-T2000W/D/I Round wrap / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • High efficiency
  • E40 screw base for simple lamp handling
  • UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
  • Factories and workshops
  • Sports halls and multi-purpose halls
  • Industrial installations
  • Airports
  • Docks and port facilities
  • Marshaling yards, container transshipment facilities
  • Approved only for use in enclosed luminaires
  • Outdoor applications only in suitable luminaires
Product features
  • POWERSTAR® quartz technology
  • Light colors: neutral white (N), daylight (D)
Electrical data
Nominal wattage 2000 W
Nominal voltage 230 V
Ignition voltage 0.23 kVp
Operating mode Conventional control gear (CCG) without ignitor
Nominal current 10300 mA
PFC capacitor at 50 Hz 60 µF
Photometrical data
Luminous flux 180000 lm
Luminous efficacy 85 lm/W
Color temperature 7450 K
Color rendering index Ra 83
Light color 874
Rated LLMF at 2,000 h 0.86
Rated LLMF at 4,000 h 0.75
Rated LLMF at 6,000 h 0.67
Rated LLMF at 8,000 h 0.60
UV protection Yes
Dimensions & Weight
Overall length 430.00 mm
Length 430.00 mm
Light center length (LCL) 265,0 mm
Diameter 106.00 mm
Product weight 544.8 g
Temperatures & operating conditions
Maximum permitted outer bulb temperature 500 °C
Maximum permitted base edge temperature 250 °C
Lifespan
Rated lamp survival factor at 2,000 h 0.97
Rated lamp survival factor at 4,000 h 0.89
Rated lamp survival factor at 6,000 h 0.75
Rated lamp survival factor at 8,000 h 0.58
Lifespan B50 9000 h
Additional product data
Base (standard designation) E40
Mercury content 170.0 mg
Design / version Clear
Product remark Not for general lighting, Operation without external igniter
Capabilities
Dimmable No
Burning position p30
Enclosed luminaire required Yes
Hot restart No
Certificates & Standards
Energy consumption 2332.00 kWh/1000h
Country-specific categorizations
ILCOS MT/UB-2000/972-E/I/SL-E40-106/430/H
Order reference HQI-T 2000W/D/I
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321527011 Round wrap
1		 465 mm x 130 mm x 130 mm 739.80 g 7.86 dm³
4008321527028 Shipping box
4		 275 mm x 270 mm x 525 mm 3583.20 g 38.98 dm³
User instruction / safety instructions
High Intensity Discharge Lamp UI
PDF (177.47 KB)
Declarations of conformity
EC Declaration of Conformity - 2021 9C1-4082707-EN-00 - HQI 1000W-2000W
PDF (156.59 KB)
Certificates
EAC RU C-DE.AYA46.B.16087_20 13.10.2020-12.10.2025 Rostest-Moskva - MH single capped
PDF (943.08 KB)
Certificates
EAC N RU D-DE.MU62.B.00932_20 06.03.2020-05.03.2025 Prommash Test - MH
PDF (1.15 MB)
Product image: white background, diagonal
326526 HQI T 1000 2000 N D
TIF (8.59 MB)

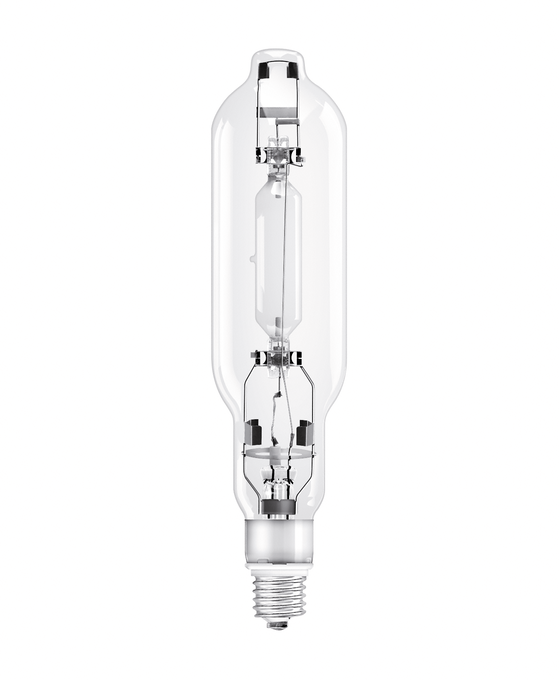

Product image: white background, upright
326528 HQI T 1000 2000 N D
TIF (8.59 MB)
Product line drawing with letters
2009_METAL HALIDE LAMPS POWERSTAR HQI-T
SVG (15.4 KB)
Product line drawing, front, no dimensions
325846_POWERSTAR HQI-T 2000W
SVG (10.55 KB)
Spectral power distribution
502828_HQI_T_1000W_200 0W_D
SVG (13.55 KB)
EAN SEG number STK number EFO number ELDAS number AU model number
4008321527011 8333132 4834605 3860699 948813850 OSRHQI-T2000W/D/I
