POWERSTAR HQI-E coated 1000 W

HQI-E 1000 W/N

GTIN: 4008321528261 Round wrap / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • E40 screw base for simple lamp handling
  • UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
  • Factories and workshops
  • Exhibition halls and trade fairs
  • Sports halls and multi-purpose halls
  • Approved only for use in enclosed luminaires
  • Outdoor applications only in suitable luminaires
Product features
  • POWERSTAR® quartz technology
  • Light colors: neutral white (NDL), daylight (D)
Safety advice
  • Do not stare at the operating light source: The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer that 4 m is not expected.
  • Disconnect mains before installation.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.
Electrical data
Nominal wattage 1000 W
Nominal voltage 125 V
Ignition voltage 4.0/5.0 kVp 1)
Operating mode Conventional control gear (CCG) and ignitor
Nominal current 9500 mA
PFC capacitor at 50 Hz 85 µF
1) Minimum / Maximum
Photometrical data
Luminous flux 100000 lm
Luminous efficacy 94 lm/W
Color temperature 3700 K
Color rendering index Ra 62
Light color 637
Rated LLMF at 2,000 h 0.85
Rated LLMF at 4,000 h 0.74
Rated LLMF at 6,000 h 0.67
Rated LLMF at 8,000 h 0.63
Rated lamp efficacy (standard co.) 94 lm/W
UV protection Yes
Dimensions & Weight
Overall length 380.00 mm
Length 380.00 mm
Diameter 165 mm
Product weight 395.00 g
Temperatures & operating conditions
Maximum permitted outer bulb temperature 500 °C
Maximum permitted base edge temperature 250 °C
Lifespan
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.98
Rated lamp survival factor at 6,000 h 0.92
Rated lamp survival factor at 8,000 h 0.77
Lifespan B50 9000 h
Additional product data
Base (standard designation) E40
Mercury content 105.0 mg
Design / version Coated
Product remark Not for general lighting
Capabilities
Dimmable No
Burning position h45
Enclosed luminaire required Yes
Hot restart No
Certificates & Standards
Energy consumption 1171.50 kWh/1000h
Country-specific categorizations
ILCOS ME/UB-1000/638-H/E/SL-E40-165/380/V
Order reference HQI-E 1000W/N C
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321528261 Round wrap
1		 750 mm x 400 mm 583.00 g
4008321528278 Shipping box
6		 545 mm x 365 mm x 435 mm 4619.00 g 86.53 dm³
User instruction / safety instructions
High Intensity Discharge Lamp UI
PDF (177.47 KB)
Declarations of conformity
EC Declaration of Conformity - 2021 9C1-4082707-EN-00 - HQI 1000W-2000W
PDF (156.59 KB)
Certificates
EAC RU C-DE.AYA46.B.16087_20 13.10.2020-12.10.2025 Rostest-Moskva - MH single capped
PDF (943.08 KB)
Certificates
EAC N RU D-DE.MU62.B.00932_20 06.03.2020-05.03.2025 Prommash Test - MH
PDF (1.15 MB)
Product image: white background, diagonal
324459_POWERSTAR HQI-E
TIF (676.47 KB)
Product line drawing with letters
327965_POWERSTAR HQI-E COATED E40
SVG (11.68 KB)
Product line drawing, front, no dimensions
327966_POWERSTAR HQI-E COATED E40
SVG (8.53 KB)

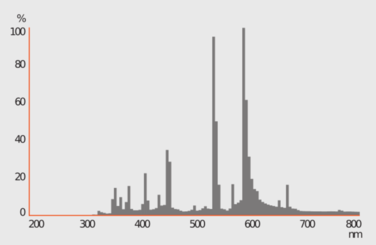

Spectral power distribution
384078_HQI_T_N_E40
PNG (92.86 KB)
EAN SEG number STK number EFO number ELDAS number
4008321528261 8333360 4834771 3810290 948801890
