Phase out
POWERSTAR HQI-T G12
HQI-T 70 W/NDL UVS
GTIN: 4008321974327
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High efficiency
- UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
- Shopping arcades
- Exhibition halls and trade fairs
- Factories and workshops
- Pedestrian zones, public squares
- Buildings, monuments, bridges
- Approved only for use in enclosed luminaires
- Outdoor applications only in suitable luminaires
Product features
- POWERSTAR® quartz technology
- Light colors: warm white (WDL), neutral white (NDL)
Safety advice
- Disconnect mains before installation.
- Must not be used if outer bulb is defective.
- Lamp to be used only in a closed luminaire.
Electrical data
| Nominal wattage | 70 W |
| Construction wattage | 74.00 W |
| Nominal voltage | 99 V |
| Ignition voltage | 3.6/5.0 kVp 1) |
| Operating mode | Conventional control gear (CCG) and ignitor, Electronic control gear (ECG) |
| Nominal current | 0.93 A |
| PFC capacitor at 50 Hz | 12 µF |
1) Minimum / Maximum
Photometrical data
| Luminous flux | 5400 lm |
| Luminous efficacy | 73 lm/W |
| Color temperature | 4200 K |
| Color rendering index Ra | 80 |
| Light color | 842 |
| Rated LLMF at 2,000 h | 0.80 |
| Rated LLMF at 4,000 h | 0.74 |
| Rated LLMF at 6,000 h | 0.68 |
| Rated LLMF at 8,000 h | 0.60 |
| UV protection | Yes |
Dimensions & Weight
| Overall length | 84.00 mm |
| Light center length (LCL) | 56,0 mm |
| Diameter | 25,0 mm |
| Product weight | 30.00 g |
Temperatures & operating conditions
| Maximum permitted outer bulb temperature | 500 °C |
| Maximum permitted base edge temperature | 280 °C |
Lifespan
| Rated lamp survival factor at 2,000 h | 0.87 |
| Rated lamp survival factor at 4,000 h | 0.85 |
| Rated lamp survival factor at 6,000 h | 0.80 |
| Rated lamp survival factor at 8,000 h | 0.60 |
| Lifespan B50 | 9000 h |
Additional product data
| Base (standard designation) | G12 |
| Mercury content | 13.0 mg |
| Design / version | Clear |
Capabilities
| Dimmable | No |
| Burning position | Any |
| Enclosed luminaire required | Yes |
| Hot restart | No |
Certificates & Standards
| Energy efficiency class | G |
| Energy consumption | 74.00 kWh/1000h |
Country-specific categorizations
| ILCOS | MT/UB-70/842-H/E/SL-G12-25/84 |
| Order reference | HQI-T 70W/NDL U |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | MH |
| Non-directional or directional | NDLS |
| Mains or non-mains | NMLS |
| Light source cap-type (or other electric interface) | G12 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | SECOND |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Claim of equivalent power | No |
| Length | 84.00 mm |
| Height | 25,0 mm |
| Width | 25,0 mm |
| Chromaticity coordinate x | 0,372 |
| Chromaticity coordinate y | 0,369 |
| Beam angle correspondence | SPHERE_360 |
| EPREL ID | 666226 |
| Model number | AM42356 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4008321974327 | Folding box 1 |
42 mm x 42 mm x 111 mm | 40.00 g | 0.20 dm³ |
| 4008321974334 | Shipping box 12 |
180 mm x 140 mm x 127 mm | 567.00 g | 3.20 dm³ |
User instruction / safety instructions
High Intensity Discharge Lamp UI
High Intensity Discharge Lamp UI
Declarations of conformity
EC Declaration of Conformity - 2021 9C1-4072118-EN-12 - HQI
EC Declaration of Conformity - 2021 9C1-4072118-EN-12 - HQI
Certificates
EAC RU C-DE.AYA46.B.16087_20 13.10.2020-12.10.2025 Rostest-Moskva - MH single capped
EAC RU C-DE.AYA46.B.16087_20 13.10.2020-12.10.2025 Rostest-Moskva - MH single capped
Certificates
EAC N RU D-DE.MU62.B.00932_20 06.03.2020-05.03.2025 Prommash Test - MH
EAC N RU D-DE.MU62.B.00932_20 06.03.2020-05.03.2025 Prommash Test - MH
Product image: white background, diagonal
332090_HQI-T G12
332090_HQI-T G12
Product image: white background, upright
331940_HQI-T G12
331940_HQI-T G12
Product line drawing with letters
2004_METAL HALIDE LAMPS POWERSTAR HQI-T
2004_METAL HALIDE LAMPS POWERSTAR HQI-T
Product line drawing, front, no dimensions
33745_POWERSTAR HQI-T
33745_POWERSTAR HQI-T
Energy label
EL-4008321974327-AM423 56
EL-4008321974327-AM423 56

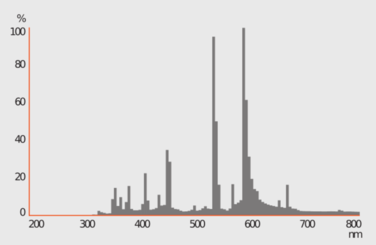

Spectral power distribution
384077_HQI_T_NDL_G12
384077_HQI_T_NDL_G12
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4008321974327 | 8333058 | 4834672 | 3861015 | 948816490 |
