POWERSTAR HQI-TS EXCELLENCE
HQI-TS 150 W/D
GTIN: 4008321678409
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High efficiency
- Uniform distribution of light
- Good to excellent color rendering
- Hot restrike capable
- UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
- Shop interiors, shop windows
- Shopping arcades
- Foyers, reception areas
- Buildings, monuments, bridges
- Museums, exhibitions
- Exhibition halls and trade fairs
- Pedestrian zones, public squares
- Parks and gardens
- Approved only for use in enclosed luminaires
- Outdoor applications only in suitable luminaires
Product features
- POWERSTAR® quartz technology
- Light colors: warm white (WDL), neutral white (NDL), daylight (D), cool daylight (CD)
Safety advice
- Do not stare at the operating light source: The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer that 4 m is not expected.
- Disconnect mains before installation.
- Must not be used if outer bulb is defective.
- Lamp to be used only in a closed luminaire.
Electrical data
| Nominal wattage | 150 W |
| Construction wattage | 156.60 W |
| Nominal voltage | 100 V |
| Ignition voltage | 13.3 kVp 1) |
| Operating mode | Conventional control gear (CCG) and ignitor, Electronic control gear (ECG) |
| Nominal current | 1.8 A |
| PFC capacitor at 50 Hz | 20 µF |
1) Minimum / Maximum
Photometrical data
| Luminous flux | 13000 lm |
| Luminous efficacy | 83 lm/W |
| Color temperature | 5450 K |
| Color rendering index Ra | ≤ 81 |
| Light color | 854 |
| Rated LLMF at 2,000 h | 0.86 |
| Rated LLMF at 4,000 h | 0.84 |
| Rated LLMF at 6,000 h | 0.77 |
| Rated LLMF at 8,000 h | 0.74 |
| Rated LLMF at 12,000 h | 0.70 |
| UV protection | Yes |
Dimensions & Weight
| Overall length | 135.00 mm |
| Light center length (LCL) | 66.00 mm |
| Diameter | 23 mm |
| Product weight | 22.00 g |
Temperatures & operating conditions
| Maximum permitted outer bulb temperature | 450 °C |
| Maximum permitted pinch temperature | 350 °C |
Lifespan
| Rated lamp survival factor at 2,000 h | 0.95 |
| Rated lamp survival factor at 4,000 h | 0.90 |
| Rated lamp survival factor at 6,000 h | 0.85 |
| Rated lamp survival factor at 8,000 h | 0.80 |
| Rated lamp survival factor at 12,000 h | 0.50 |
| Lifespan B50 | 12000 h |
Additional product data
| Base (standard designation) | RX7s-24 |
| Mercury content | 13.0 mg |
| Design / version | Clear |
Capabilities
| Dimmable | No |
| Burning position | P45 |
| Enclosed luminaire required | Yes |
| Hot restart | Yes |
Certificates & Standards
| Energy efficiency class | G |
| Energy consumption | 157.00 kWh/1000h |
Country-specific categorizations
| ILCOS | MD/UB-150/856-H/E/SL-RX7s=24-23/135/H |
| Order reference | HQI-TS 150W/D/E |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | MH |
| Non-directional or directional | NDLS |
| Mains or non-mains | NMLS |
| Light source cap-type (or other electric interface) | RX7s-24 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | SECOND |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Claim of equivalent power | No |
| Length | 135.00 mm |
| Height | 23 mm |
| Width | 23 mm |
| Chromaticity coordinate x | 0,335 |
| Chromaticity coordinate y | 0,348 |
| Beam angle correspondence | SPHERE_360 |
| EPREL ID | 546550 |
| Model number | AC34324 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4008321678409 | Folding box 1 |
35 mm x 35 mm x 141 mm | 32.00 g | 0.17 dm³ |
| 4008321678416 | Shipping box 12 |
149 mm x 116 mm x 154 mm | 498.00 g | 2.66 dm³ |
User instruction / safety instructions
High Intensity Discharge Lamp UI
High Intensity Discharge Lamp UI
Declarations of conformity
EC Declaration of Conformity - 2021 9C1-4072118-EN-12 - HQI
EC Declaration of Conformity - 2021 9C1-4072118-EN-12 - HQI
Certificates
EAC RU C-DE.AYA46.B.16106_20 13.10.2020-12.10.2025 Rostest-Moskva - MH double capped
EAC RU C-DE.AYA46.B.16106_20 13.10.2020-12.10.2025 Rostest-Moskva - MH double capped
Certificates
EAC N RU D-DE.MU62.B.00932_20 06.03.2020-05.03.2025 Prommash Test - MH
EAC N RU D-DE.MU62.B.00932_20 06.03.2020-05.03.2025 Prommash Test - MH
Product image: white background, diagonal
69143_POWERSTAR HQI-TS 70W NDL EXCELLENCE
69143_POWERSTAR HQI-TS 70W NDL EXCELLENCE
Product line drawing with letters
312891_POWERSTAR HQI-TS EXCELLENCE
312891_POWERSTAR HQI-TS EXCELLENCE
Product line drawing, front, no dimensions
325810_POWERSTAR HQI-TS EXCELLENCE
325810_POWERSTAR HQI-TS EXCELLENCE
Energy label
EL-4008321678409-AC343 24
EL-4008321678409-AC343 24

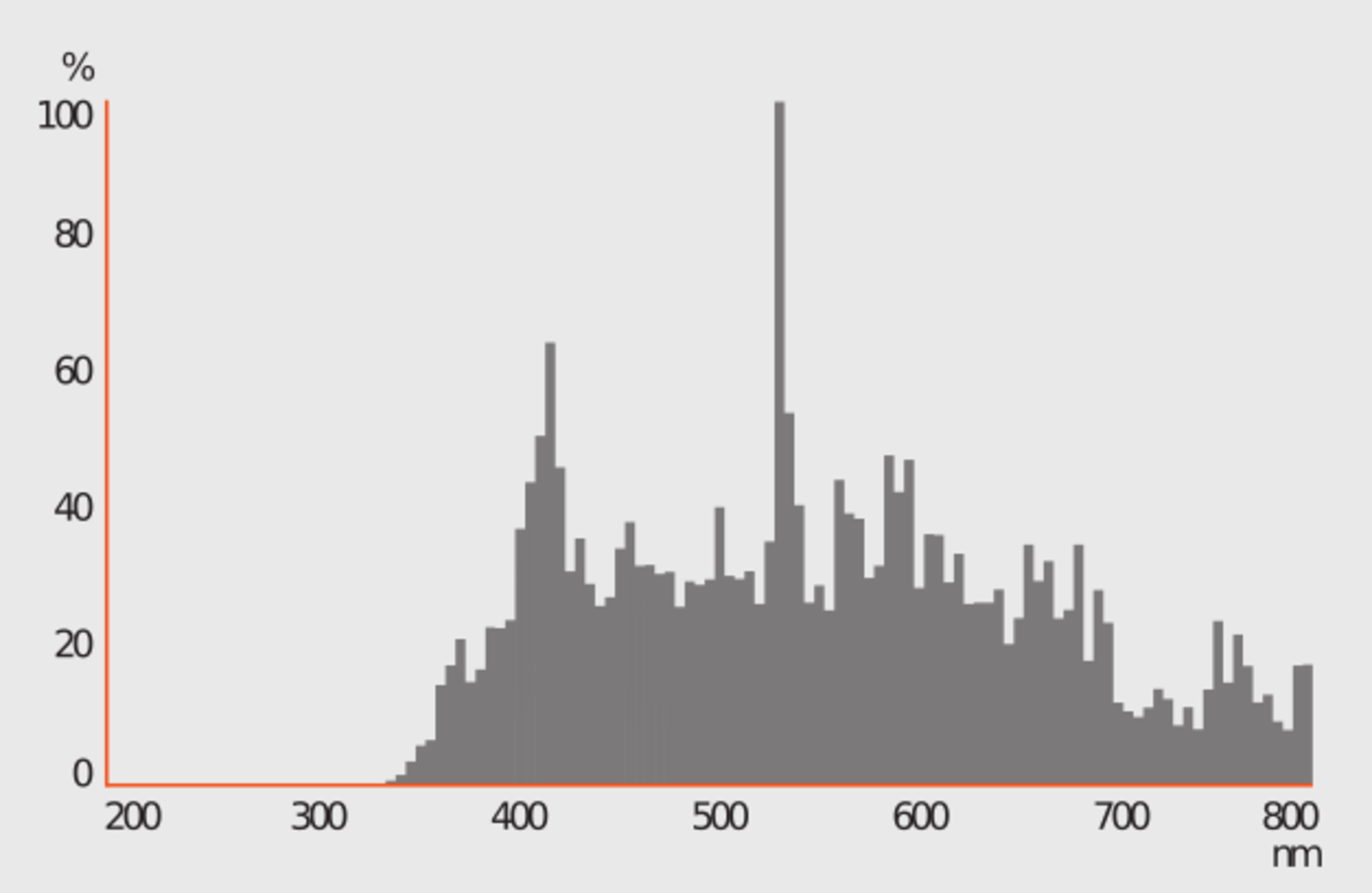

Spectral power distribution
384072_HQI_TS_D
384072_HQI_TS_D
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4008321678409 | 8333222 | 4834753 | 3861018 | 948885220 |
