Phase out
POWERSTAR HQI-TS

HQI-TS 250 W/D UVS

GTIN: 4008321689139 Sleeve / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • High efficiency
  • Uniform distribution of light
  • Good to excellent color rendering
  • Hot restrike capable
  • UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
  • Foyers, reception areas
  • Factory and hall lighting with low-cost installations
  • Exhibition halls and trade fairs
  • Sports halls and multi-purpose halls
  • Pedestrian zones, public squares
  • Parks and gardens
  • Buildings, monuments, bridges
  • Approved only for use in enclosed luminaires
  • Outdoor applications only in suitable luminaires
Product features
  • POWERSTAR® quartz technology
  • Light colors: warm white (WDL), neutral white (NDL), daylight (D)
Electrical data
Nominal wattage 250 W
Construction wattage 250.00 W
Nominal voltage 98 V
Ignition voltage 4.0/25 kVp 1)
Operating mode Conventional control gear (CCG) and ignitor
Nominal current 3 A
PFC capacitor at 50 Hz 32 µF
1) Minimum / Maximum
Photometrical data
Luminous flux 21500 lm
Luminous efficacy 82 lm/W
Light color (designation) Daylight
Color temperature 5500 K
Color rendering index Ra 93
Light color 955
Rated LLMF at 2,000 h 0.70
Rated LLMF at 4,000 h 0.60
Rated LLMF at 6,000 h 0.55
Rated LLMF at 8,000 h 0.52
Rated LLMF at 12,000 h 0.50
Rated lamp efficacy (standard co.) 86 lm/W
UV protection Yes
Dimensions & Weight
Overall length 162.00 mm
Light center length (LCL) 81,0 mm
Diameter 25,0 mm
Product weight 52.00 g
Temperatures & operating conditions
Maximum permitted pinch temperature 300 °C
Lifespan
Rated lamp survival factor at 2,000 h 0.95
Rated lamp survival factor at 4,000 h 0.90
Rated lamp survival factor at 6,000 h 0.85
Rated lamp survival factor at 8,000 h 0.80
Rated lamp survival factor at 12,000 h 0.50
Lifespan B50 12000 h
Additional product data
Base (standard designation) Fc2
Mercury content 13.0 mg
Design / version Clear
Capabilities
Dimmable No
Burning position P45
Enclosed luminaire required Yes
Hot restart Yes
Certificates & Standards
Energy efficiency class G
Energy consumption 275.00 kWh/1000h
Country-specific categorizations
ILCOS MD/UB-250/951-H/E/SL-Fc2-25/162/H
Order reference HQI-TS 250W/D U
Energy labelling regulation data acc EU 2019/2015
Lighting technology used MH
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) Fc2
Connected light source (CLS) No
Color-tuneable light source No
Envelope SECOND
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 162.00 mm
Height 25,0 mm
Width 25,0 mm
Chromaticity coordinate x 0.332
Chromaticity coordinate y 0.342
Beam angle correspondence SPHERE_360
EPREL ID 1535169
Model number AA35052
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321689139 Sleeve
1		 260 mm x 29 mm x 51 mm 94.00 g 0.38 dm³
4008321689146 Shipping box
12		 216 mm x 166 mm x 272 mm 984.00 g 9.75 dm³
Product image: white background, diagonal
320580_POWERSTAR HQI-TS 250_400W D PRO
TIF (23.26 MB)

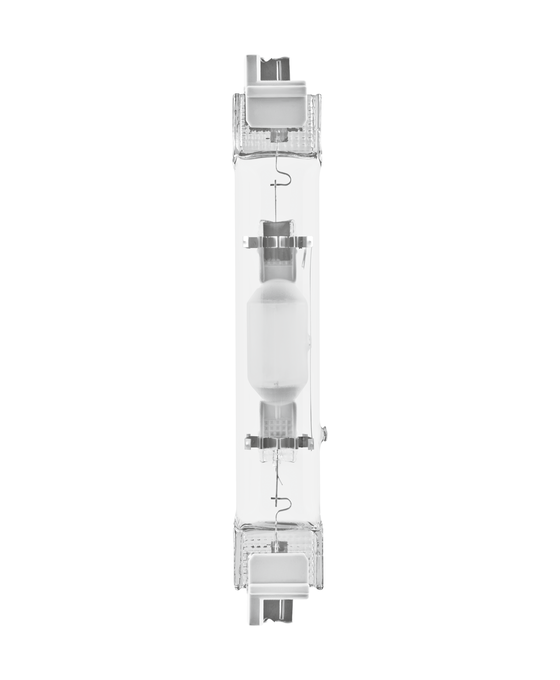

Product image: white background, upright
HQI-TS 400W/NDL/D and HQI-TS 250W/D/WDL/NDL
TIF (52.98 MB)
Product line drawing with letters
2002_METAL HALIDE LAMPS POWERSTAR HQI-TS
SVG (11.12 KB)
Product line drawing, front, no dimensions
325847_POWERSTAR HQI-TS 250W
SVG (6.22 KB)
Energy label
EL-4008321689139-AA350 52
PDF (21.49 KB)

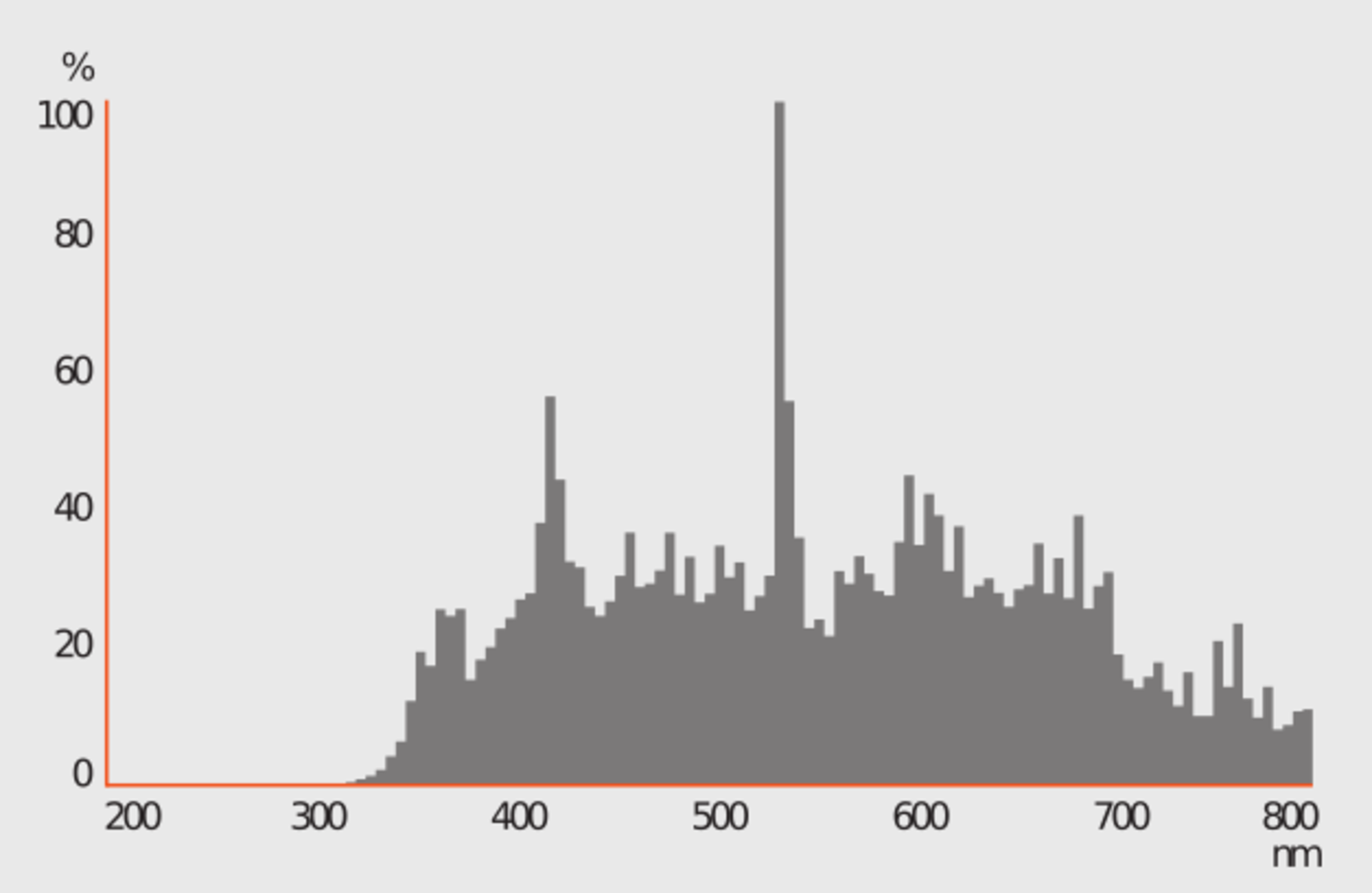

Spectral power distribution
384076_HQI_T_D_PRO
PNG (98.46 KB)
EAN SEG number STK number EFO number ELDAS number
4008321689139 8332840 4834704 3861021 948884440
