PRODUCT DETAILS
Product benefits
- Bi-directional communication between KNX and compatible OSRAM LMS und sensors
- In combination with DALI Professional, app control additionally to KNX possible
- With DALI Professional, DALI sensor information in KNX is available
- Connected to DALI Professional facilitates a solid and easy light regulation
- In combination with DALI Professional HCL, RGB solutions in KNX possible
Areas of application
- Industry with heavy duty light regulation even in high bay areas
- Office with high end HCL functionality
- Representative areas with multi-color effects and Tunable White
- Shop and retail with colored and Tunable White lighting
- Healthcare and hospitality with HCL functionality
Product features
- Fully configured with the ETS Software and handles up to 250 group objects
- Powered via KNX Bus, no dedicated power supply necessary
- KNX programming interface according to KNXnet/IP specification
- LEDs show different work modes and communication errors on LAN and KNX Bus
- Buttons for diagnose functionality
Electrical data
| Nominal wattage | 30.00 W |
| Nominal voltage | 100…240 V |
| Nominal current | 0.64 A |
| Mains frequency | 50/60 Hz |
Dimensions & Weight
| Length | 98.00 mm |
| Width | 72.00 mm |
| Height | 62.00 mm |
| Product weight | 260.00 g |
Colors & materials
| Product color | Grey |
| Casing material | Plastic |
| Body material | Plastic |
Temperatures & operating conditions
| Ambient temperature range | -5…+45 °C |
| Permitted rel. humidity during operation | 5…93 % |
Capabilities
| Dimmable | No |
| Type of installation | Din Rail |
Certificates & Standards
| Approval marks – approval | KNX |
| Standards | CE |
| Protection class | II |
| Type of protection | IP20 |
LOGISTICAL DATA
| Temperature range at storage | -25…70 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4062172050500 | Folding box 1 |
100 mm x 80 mm x 60 mm | 291.00 g | 0.48 dm³ |
| 4062172050517 | Shipping box 25 |
400 mm x 330 mm x 300 mm | 7638.00 g | 39.60 dm³ |

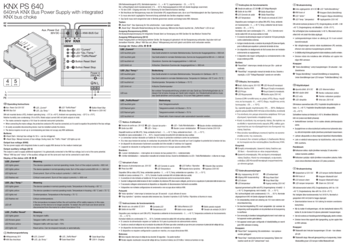

User instruction / safety instructions
KNX PS 640
KNX PS 640
Declarations of conformity
EU Declaration of Conformity_2019_9C1_37 62718_EN_00
EU Declaration of Conformity_2019_9C1_37 62718_EN_00
Product image: white background, diagonal
KNX PS 640
KNX PS 640

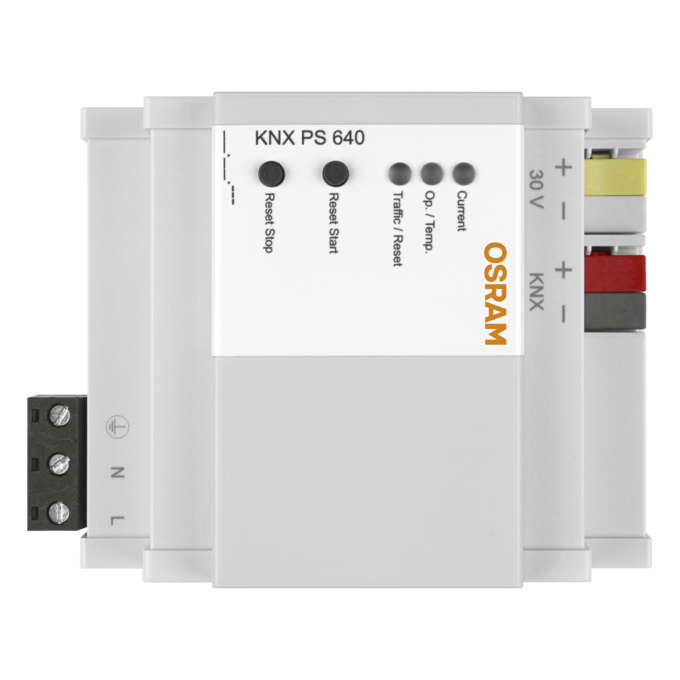

Product image: white background, horizontal
KNX PS 640
KNX PS 640

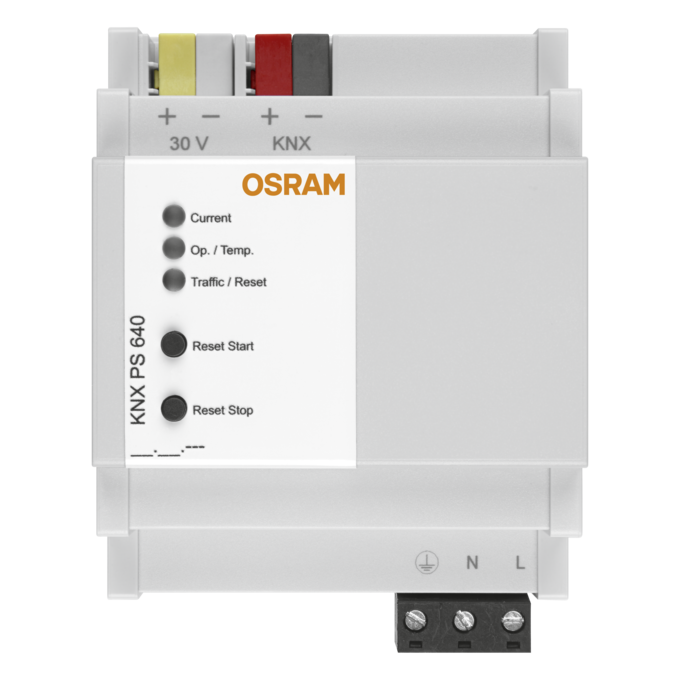

Product image: white background, upright
KNX PS 640
KNX PS 640
Product line drawing with letters
KNX PS 640
KNX PS 640
Product line drawing with numbers
KNX PS 640
KNX PS 640
Product line drawing, front, no dimensions
KNX PS 640
KNX PS 640
