DALI MCU Tunable White
DALI MCU TW G2
GTIN: 4062172224673
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Intuitive manual dimming, switching and changing of colour temperature
- Individual setting of minimal brightness level
- Individual setting of colour temperature range
Areas of application
- Conference rooms
- Restaurants
- Shop lighting
- Private homes
Product features
- Up to 4 DALI MCU TWs can be connected in parallel to set up multiple control points
- Automatic synchronization between the control points
- Cover and rotary switch in neutral white
- Length of the DALI control cable: up to 300 m
Equipment / Accessories
- Suitable for up to 25 electronic control gears
- Cover and rotary knob included
Electrical data
| Nominal wattage | 2.00 W |
| Nominal voltage | 230 V |
| Mains frequency | 50/60 Hz |
Dimensions & Weight
| Length | 71.00 mm |
| Width | 71.00 mm |
| Height | 50.00 mm |
| Product weight | 95.00 g |
Colors & materials
| Product color | White |
Temperatures & operating conditions
| Ambient temperature range | -20…+50 °C |
Additional product data
| Groups | 1 |
Capabilities
| Dimmable | Yes |
| Dimming interface | DALI-2 |
| Type of installation | Integrated in flush device box |
Certificates & Standards
| Approval marks – approval | CE, EAC, UKCA |
| Protection class | II |
| Type of protection | IP20 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4062172224673 | Folding box 1 |
85 mm x 85 mm x 65 mm | 140.00 g | 0.47 dm³ |
| 4062172224680 | Shipping box 48 |
362 mm x 270 mm x 288 mm | 7156.00 g | 28.15 dm³ |
User instruction / safety instructions
21755912 DALI MCU TW G2
21755912 DALI MCU TW G2
Declarations of conformity
DIM MCU DALI MCU TW
DIM MCU DALI MCU TW

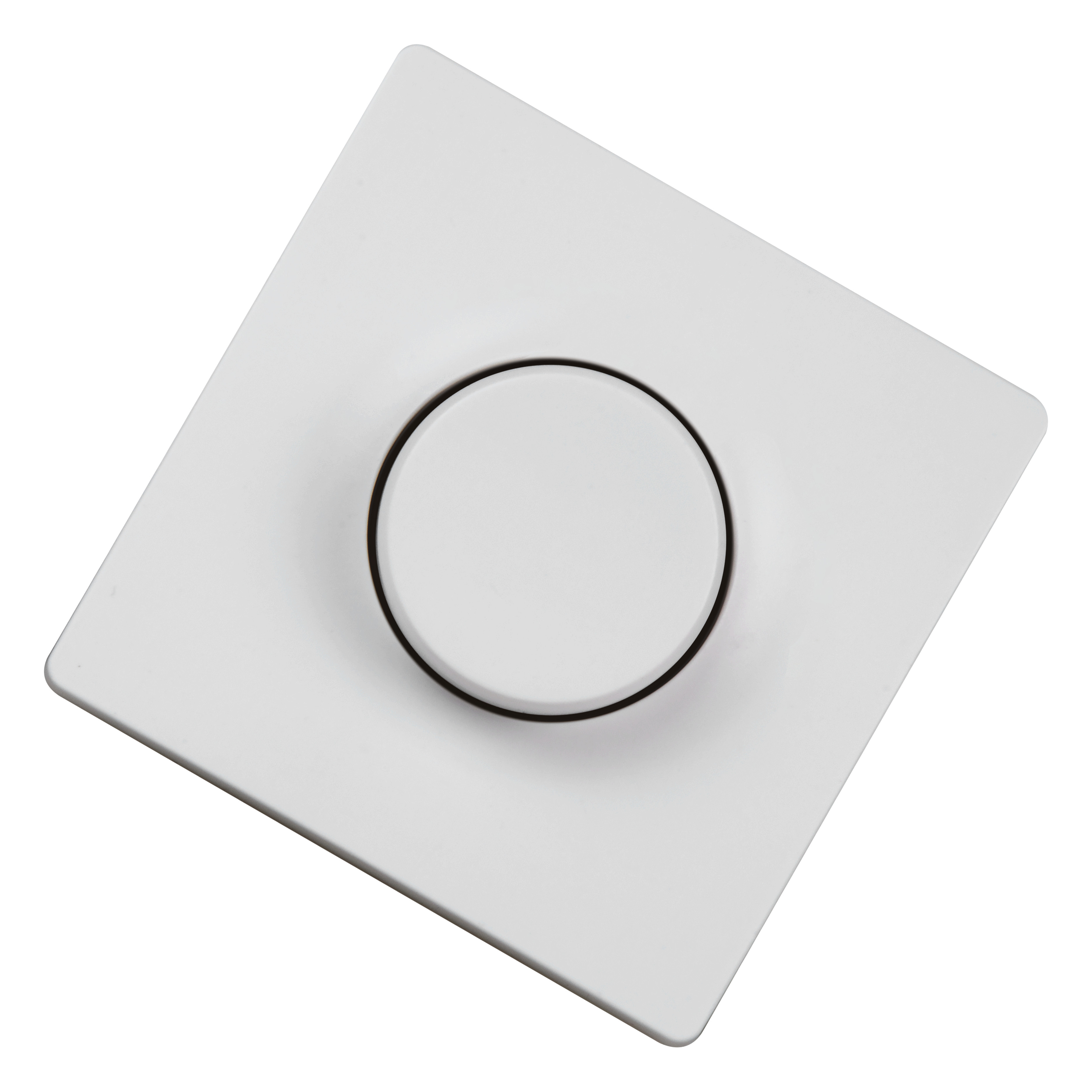

Product image: white background, diagonal
22275816 DALI MCU TW G2
22275816 DALI MCU TW G2
Product line drawing with numbers
22275885 DALI MCU TW G2
22275885 DALI MCU TW G2
Product line drawing with numbers
22275886 DALI MCU TW G2
22275886 DALI MCU TW G2
| EAN | SEG number | EFO number | ELDAS number |
|---|---|---|---|
| 4062172224673 | 7985387 | 1407942 | 919000210 |
