DAMP PROOF COMPACT GEN 2

DP COMP 1500 V 50W 840 IP66 PS

GTIN: 4058075740891 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Highly versatile due to available power select versions that allow 2 different lumen packages
  • Easy installation as mounting brackets can be positioned freely on the luminaire

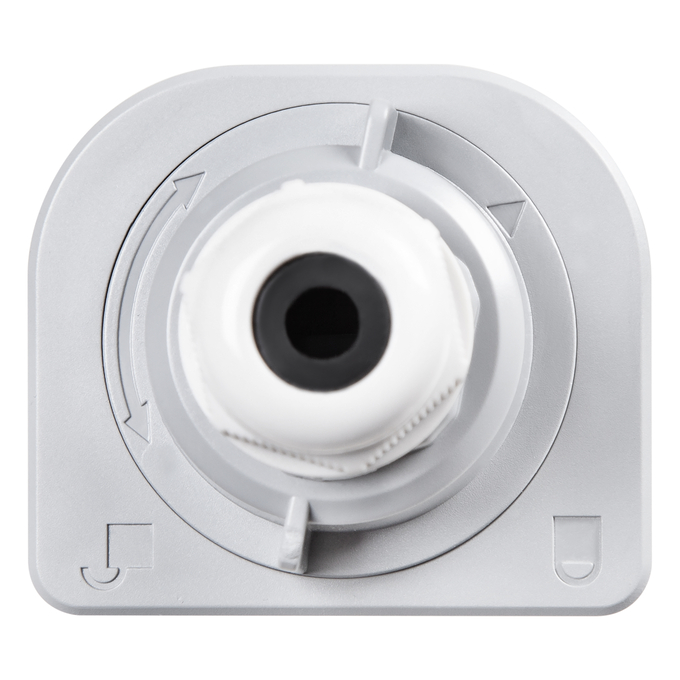

  • Easy access to electrical terminal thanks to end caps with twist and lock mechanism
  • Tool-free electrical connection due to push button connector
  • Uniform light distribution
  • 5 years guarantee
Areas of application
  • Industrial and storage facilities
  • Car parks and underpasses
  • Garages
  • Workshops, assembly lines
Product features
  • Power select option available to select between 2 lumen packages
  • Lifetime (L80/B10): up to 50,000 h (at 25 °C)
  • High luminous efficacy: up to 123 lm/W
  • Polycarbonate housing IP66 and IK08
  • Beam angle: 120°
Equipment / Accessories
  • Stainless steel clamps with safety screws included
  • Mounting accessories included (suspension kit, theft protection kit)
References / Links
Electrical data
Nominal wattage 50 W / 34 W 1)
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 228.000 mA 1)
Inrush current 35.2 A
Inrush current time Th50 4.48 µs
Max. number of luminaires per miniature circuit breaker B16 33
Max. number of luminaires per miniature circuit breaker C10 27
Max. number of luminaires per miniature circuit breaker C16 44
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class II
Operating mode Integrated LED driver

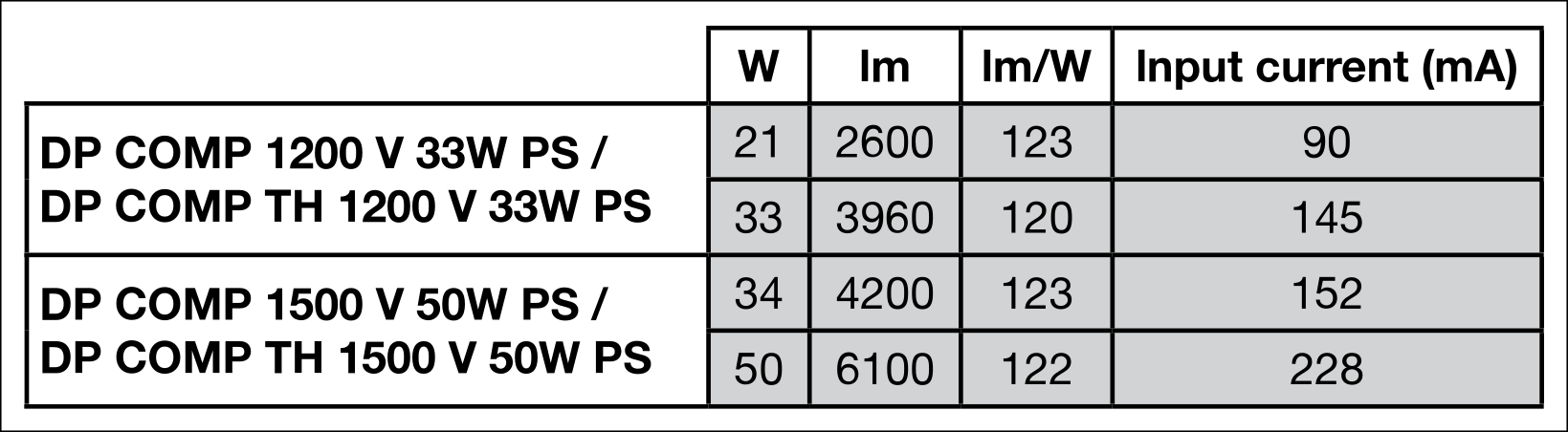

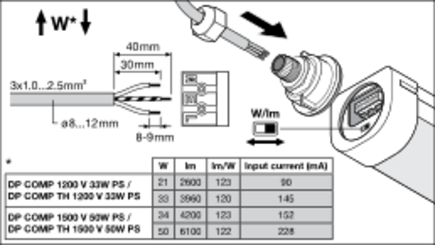

1) For possible options refer to lumen/power table image
Photometrical data
Luminous flux 6100 lm / 4200 lm 1)
Luminous efficacy 123 lm/W / 122 lm/W 1)
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra ≥80
Standard deviation of color matching 5 sdcm
Low flicker Yes
Flickering metric (Pst LM) ≤ 1
Stroboscope effect metric (SVM) ≤ 0.4
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °
1) For possible options refer to lumen/power table image
Dimensions & Weight
Length 1543.00 mm
Height 53.00 mm
Width 60.00 mm
Product weight 860.00 g
Materials & Colors
Product color White
Housing color White
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+45 °C
Temperature range at storage -40…+80 °C
Type of connection Screwless terminal, 3-Pole
Type of protection IP66
Protection class IK (shock resistance) IK08
Dimmable Yes
Type of dimming DIP SWITCH
Mounting type Surface/Suspended
Mounting location Wall, Ceiling
Application environment Indoor
Adjustable No
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 75000 h 1)
Lifespan L80/B10 at 25 °C 50000 h 1)
Lifespan L90/B10 at 25 °C 25000 h
Number of switching cycles 100000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
Output current 570 mA
ECG - Output ripple current < 20 %
Certificates & Standards
Standards CE, CB, TÜV SÜD, UKCA, EAC, EPD
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
EPD LEDV-00004-V01.01-EN
Replaceable light source (EPREL) Not replaceable
Additional product data
Added function MULTI SELECT
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075740891 Folding box
1		 60 mm x 1,572 mm x 67 mm 1126.00 g 6.32 dm³
4058075740907 Shipping box
6		 1,600 mm x 195 mm x 145 mm 7825.00 g 45.24 dm³
User instruction / safety instructions
UI DP COMP V
PDF (4.1 MB)
Legal information
LSI DP COMP V
PDF (2.97 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Declarations of conformity
DP COMP_CE
PDF (298.58 KB)
EPD
EPD EN DAMP PROOF COMPACT GEN 2
PDF (0 B)

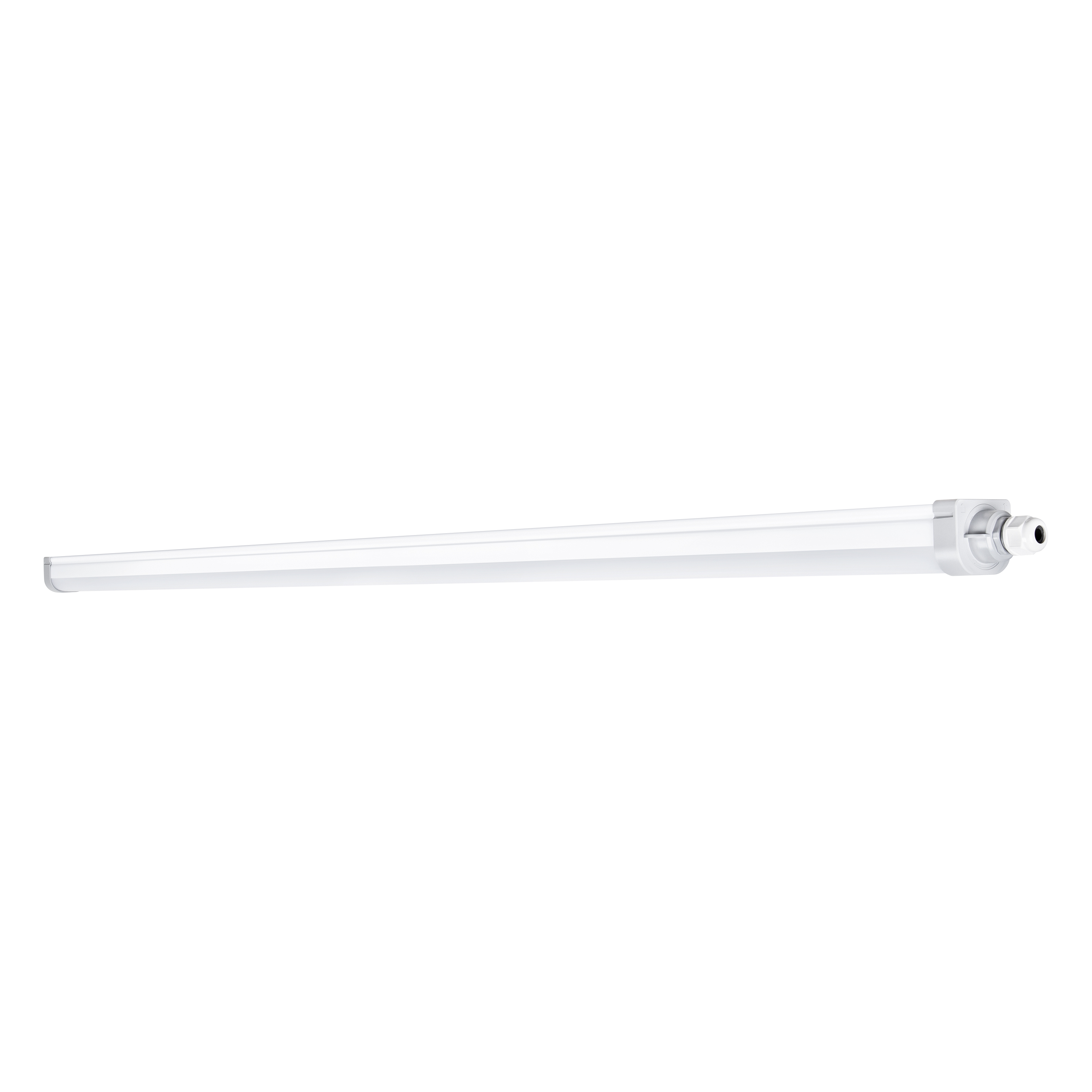

Product image: white background, diagonal
DP COMP 1500 V
JPG (717.65 KB)
Product image: white background, diagonal, alternative image
DP COMP 1500 V
JPG (679.63 KB)

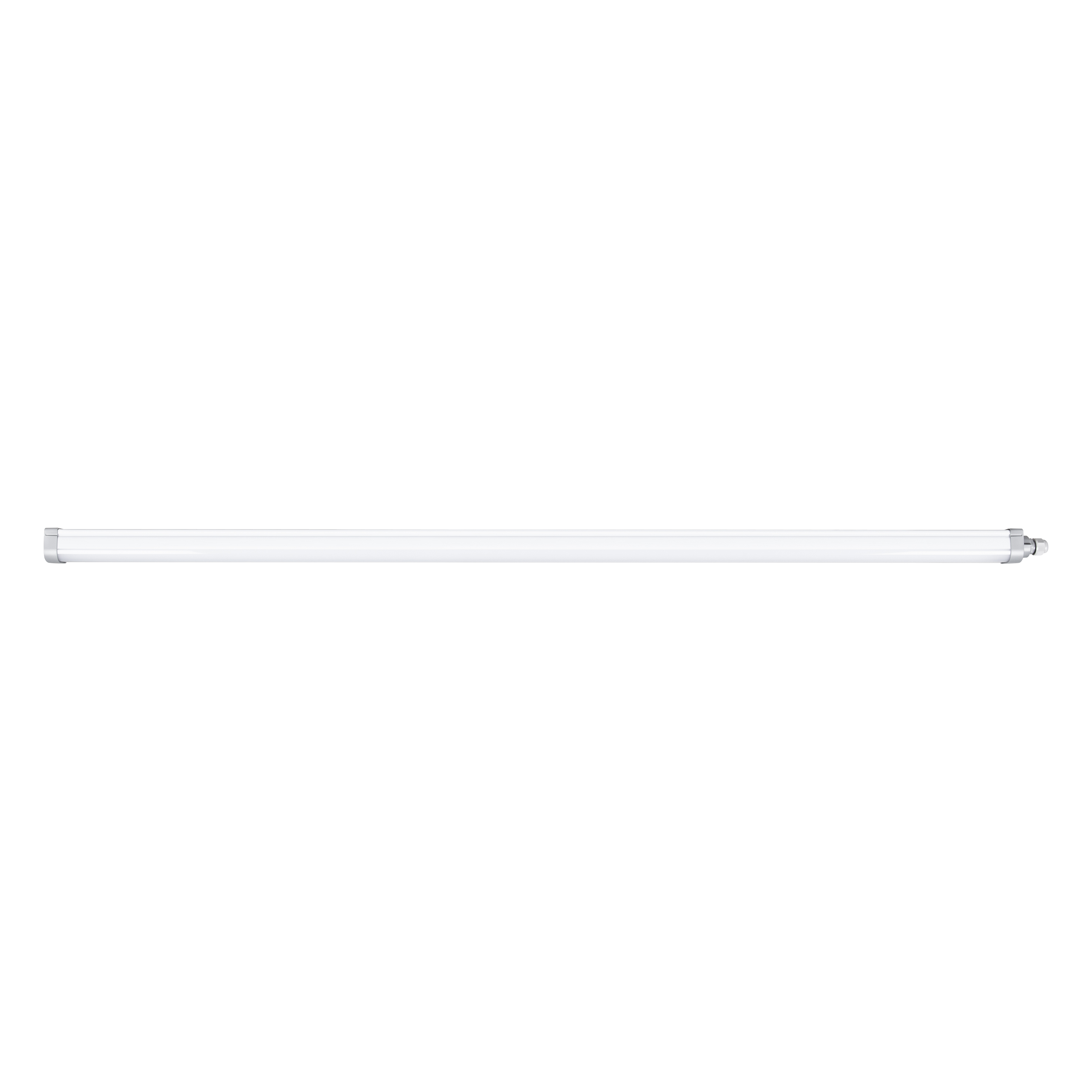

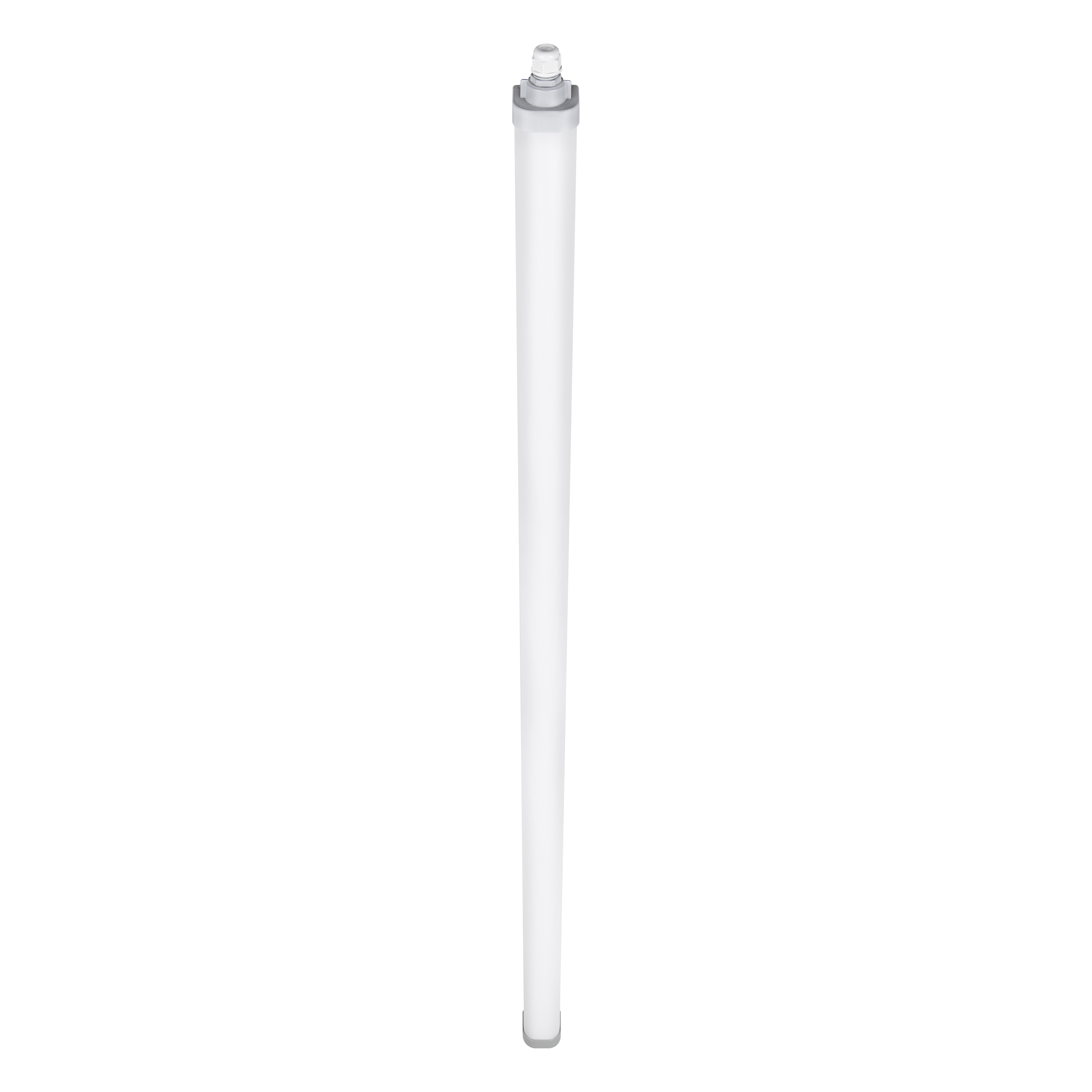

Product image: white background, horizontal
DP COMP 1500 V
JPG (668.96 KB)

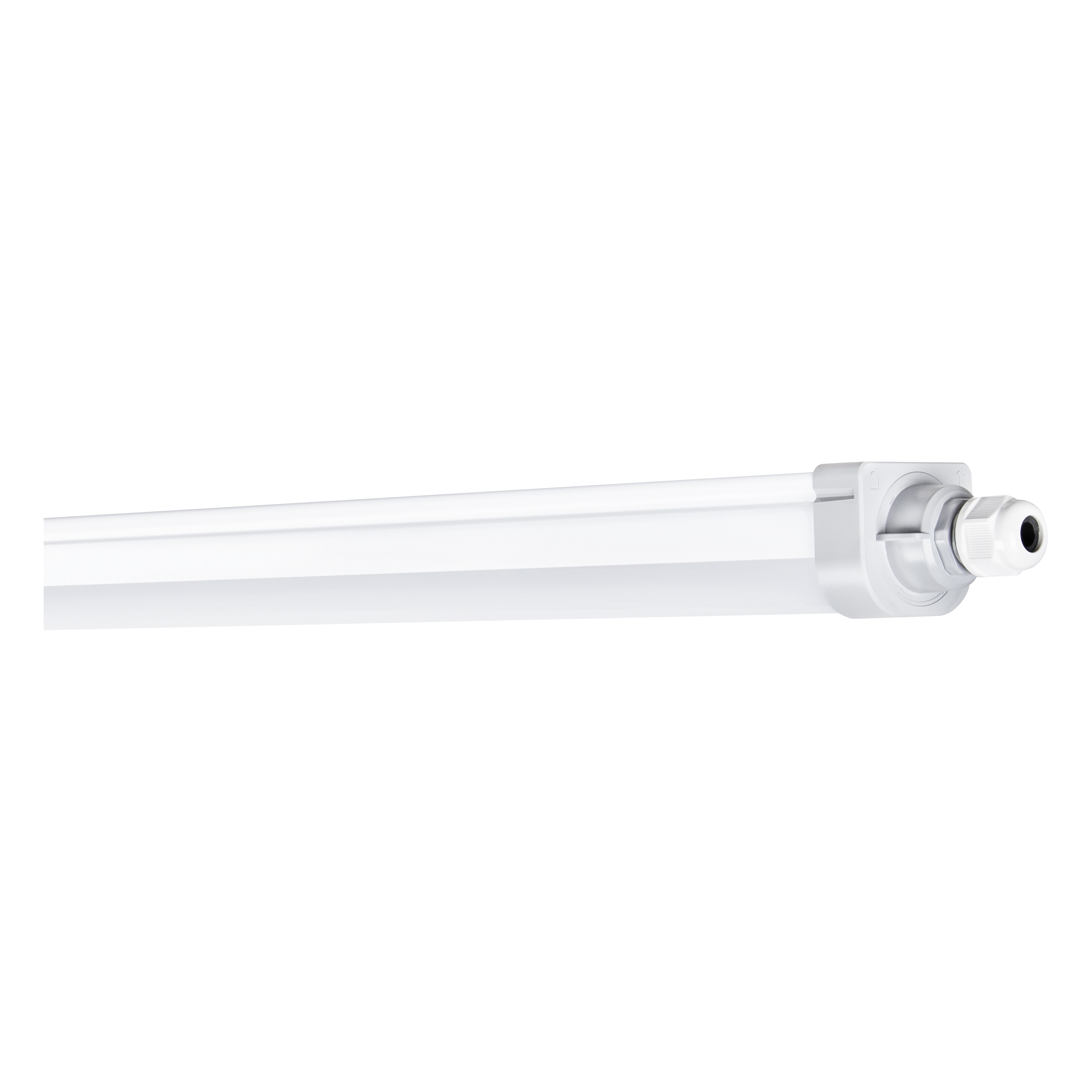

Product image: white background, upright
DP COMP TH 1200 V
JPG (817.43 KB)
Product line drawing with letters
DP COMP 1500 V
SVG (19.9 KB)
Product line drawing with numbers
DP COMP 1500 V
SVG (26.7 KB)
Product line drawing, front, no dimensions
DP COMP 1500 V
SVG (16.13 KB)

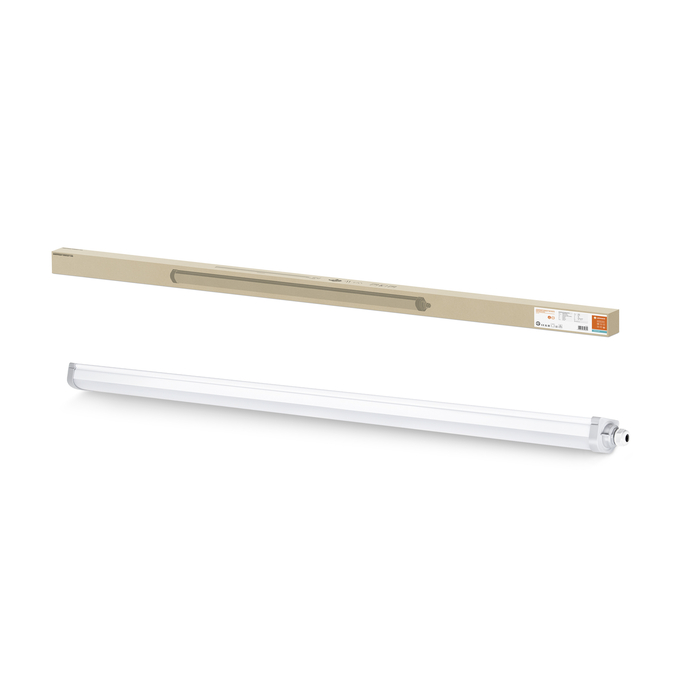

Combo Shot = Product Beauty Shot + Packaging Image
DP COMP 1500 V 50W 840 IP66 PS LEDV
JPG (389.52 KB)

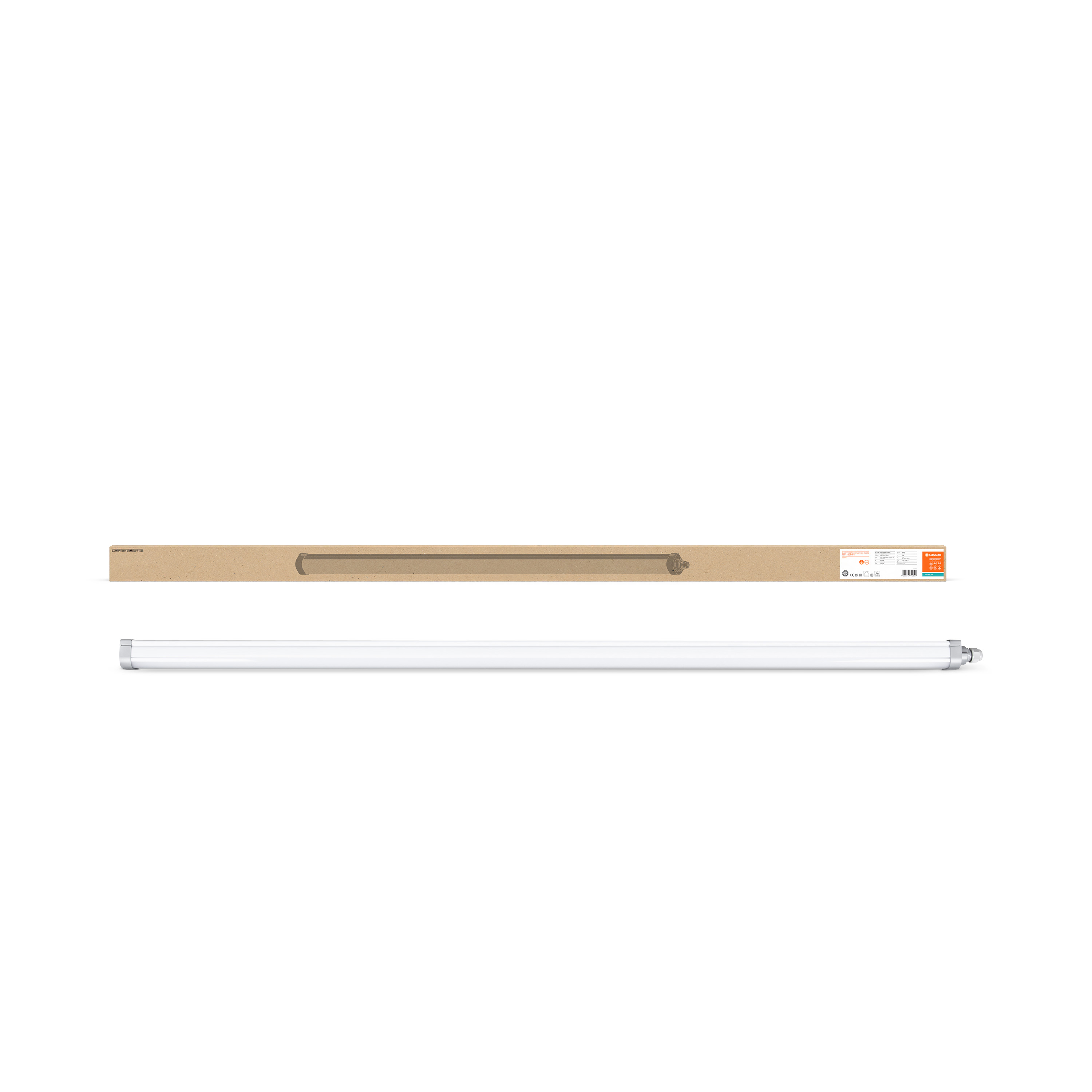

Combo Shot = Product Beauty Shot + Packaging Image
DP COMP 1500 V 50W 840 IP66 PS
JPG (385.03 KB)

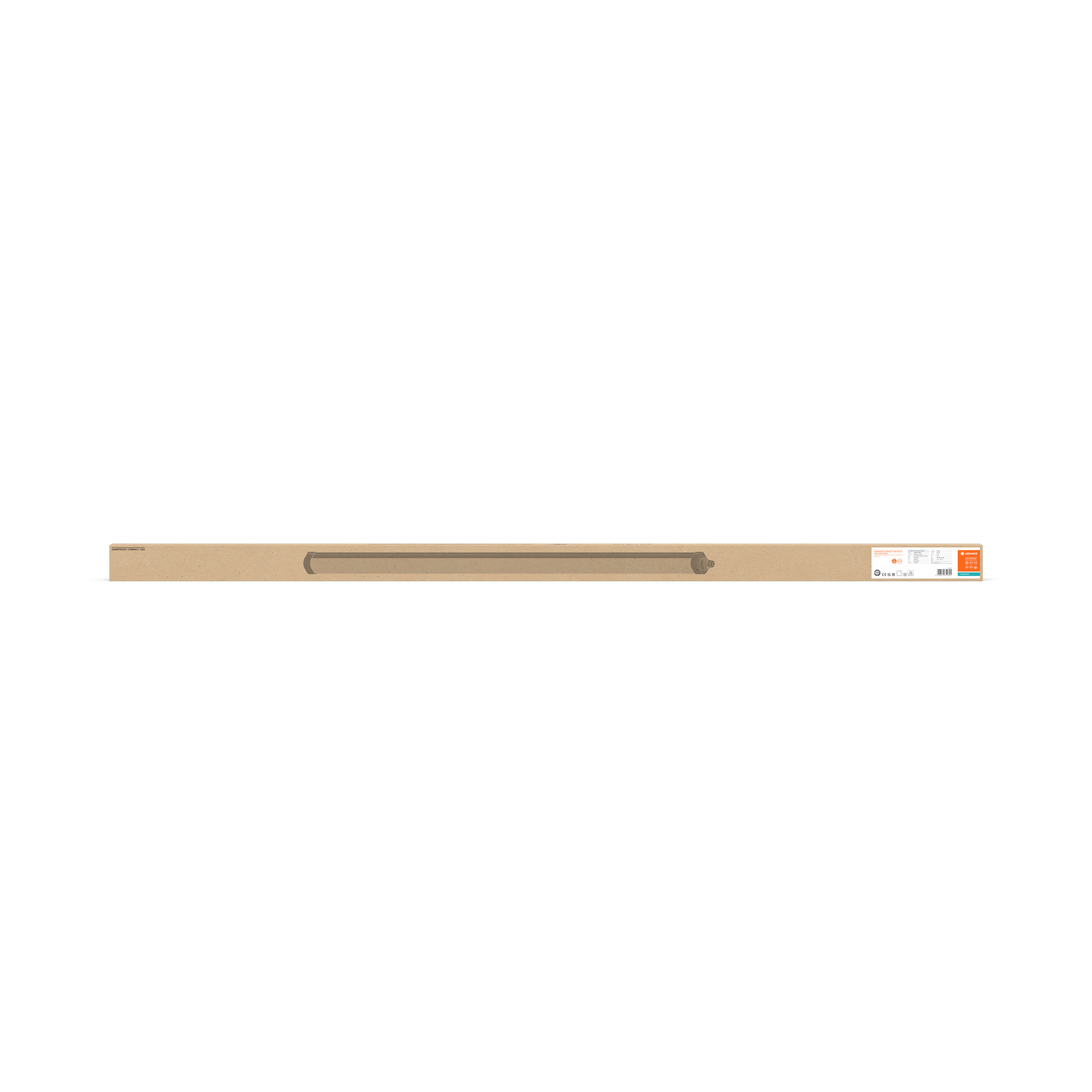

Packaging image, frontal
DP COMP 1500 V 50W 840 IP66 PS
JPG (371.88 KB)

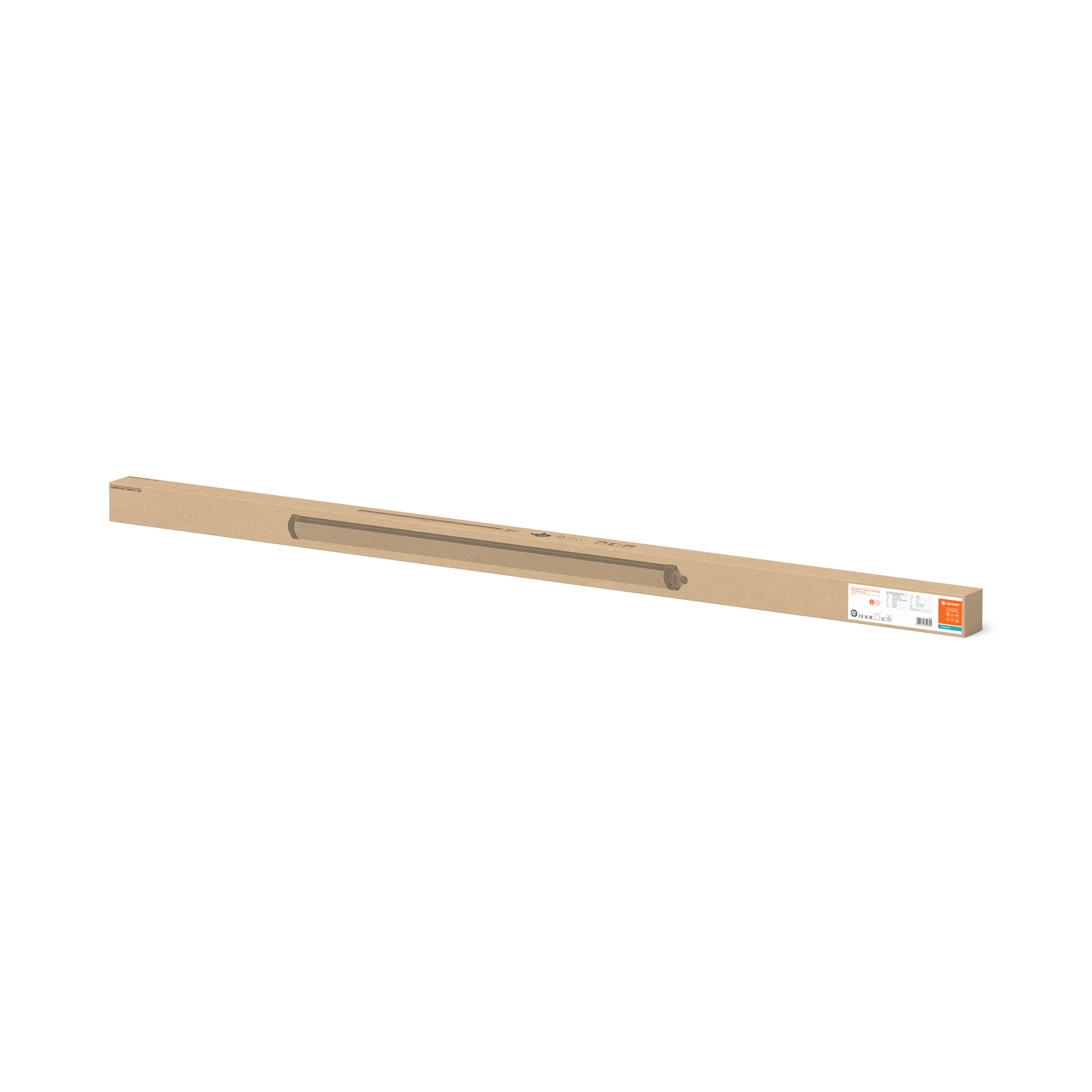

Packaging image, spacial
DampProof Compact Value 1500 MiCh
JPG (393.82 KB)

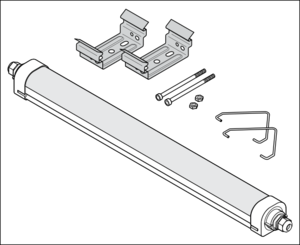

Catalog info 1
DP COMP V IP66
PNG (72.02 KB)
Catalog info 2
DP COMP V IP66
PNG (18.24 KB)
Catalog info 3
DP COMP V IP66
PNG (13.2 KB)
Catalog info 4
Catalog info 4 DP COMP V
PNG (94.57 KB)
IES file (IES)
DP COMP 1500 V 50W 840 IP66 PS
IES (4.44 KB)
LDT file (Eulumdat)
DP COMP 1500 V 50W 840 IP66 PS
LDT (4.9 KB)
ULD file (DIALux)
DP COMP 1500 V 50W 840 IP66
ULD (388.1 KB)
ROLF file (RELUX)
DP COMP 1500 V 50W 840
ROLF (222.12 KB)

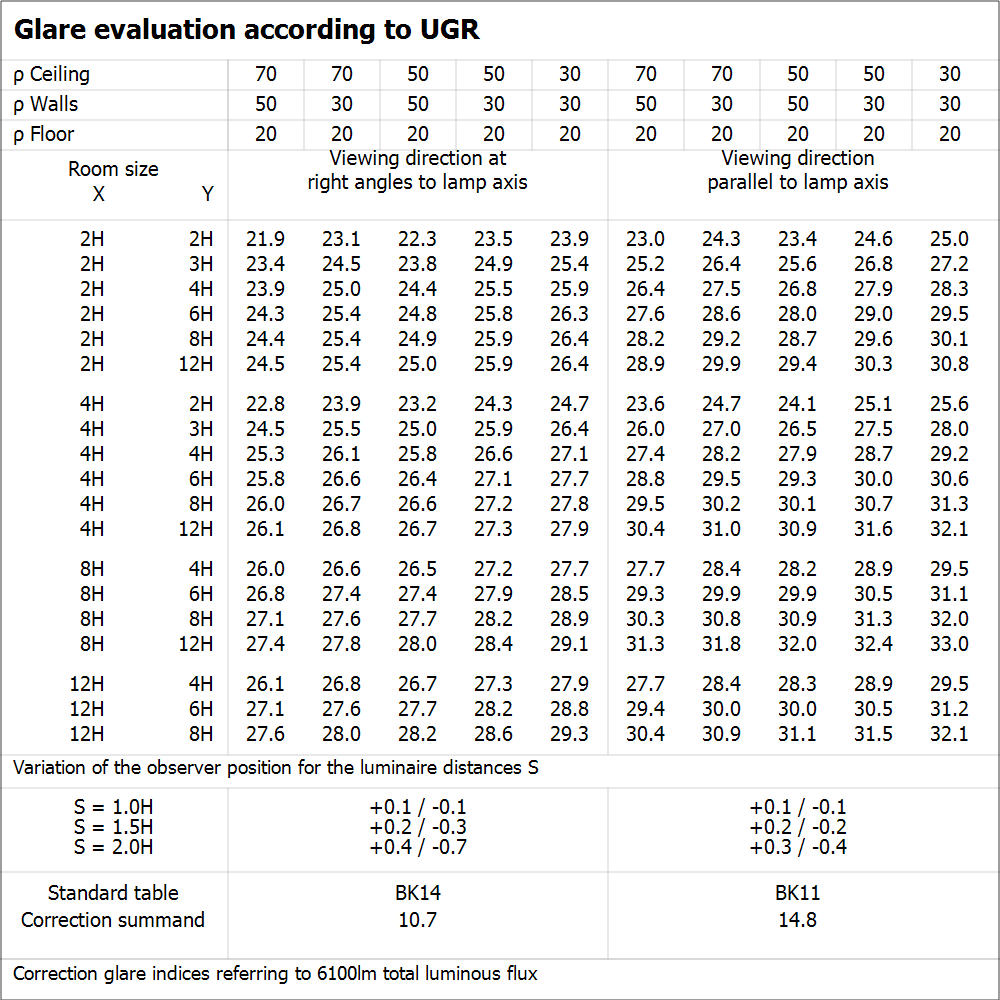

UGR file (UGR table)
DP COMP 1500 V 50W 840 IP66 PS
PNG (63.12 KB)
Light distribution curve type cone
DP COMP 1500 V 50W 840 IP66 PS
SVG (16.77 KB)
Light distribution curve type polar
DP COMP 1500 V 50W 840 IP66 PS
SVG (20.41 KB)
BIM Revit 3D
DP COMP G2
ZIP (1.17 MB)
CAD STEP 3D
DP COMP G2 1500
STEP (2.61 MB)
Tender documents
DAMP PROOF COMPACT GEN 2 1500 V 50W 840 IP66 PS-EN
TXT (1.98 KB)

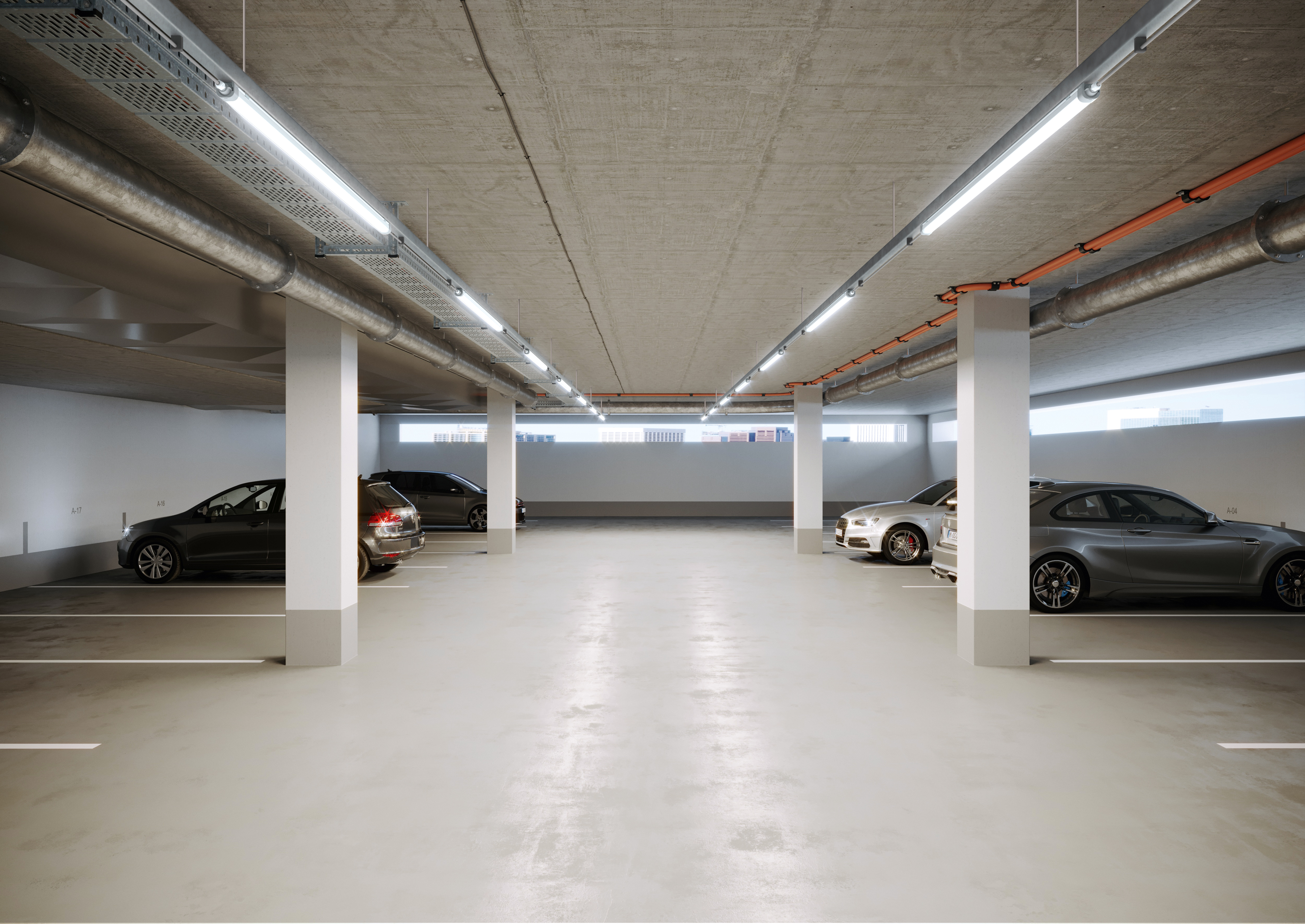

Application pictures
LEDVANCE-luminaires-Da mp Proof Compact Gen2_Parking garage
JPG (4.27 MB)
EAN SEG number STK number EFO number ELDAS number
4058075740891 7217293 4324758 3310219 941386320
