DAMP PROOF HE 5X THROUGHWIRING

DP HE 5TH 1200 P 29W ML 840 IP65

GTIN: 4099854480621 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Through-wiring 5x2.5mm² already installed
  • Uniform light distribution
  • Easy upgradeability of light source and driver (EVERLOOP design)
  • Enables participation in funding programs in certain countries to replace light source and driver
  • Easy installation, no tools required for connection
  • Low flicker ≤ 5 %
  • Energy savings up to 68 % (compared to luminaires that use fluorescent lamps)
Areas of application
  • Industrial and storage facilities
  • Workshops, assembly lines
  • Passages, underpasses
  • Parking garages
  • Underground parking
Product features
  • Very high luminous efficacy: up to 164 lm/W
  • Lifetime (L80/B50): up to 100,000 h (at 25 °C)
  • Housing and diffuser material: polycarbonate (PC)
  • Multi Lumen function: power steps selectable
  • Compatible to Zhaga Book 26 LED light sources
  • Beam angle: 120°
  • Protection rating: IP65
  • Impact resistance: IK08
Equipment / Accessories
  • Mounting brackets, Antitheft protection, triangle, 2nd cable gland and 2 grommets included
  • EVERLOOP luminaire: upgrades and replacements available
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Electrical data
Nominal wattage 28.3 W / 24.0 W / 21.4 W / 17.3 W / 14.0 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 200/175/150/125/100 mA
Inrush current 8.1 A
Inrush current time Th50 554 µs
Max. number of luminaires per miniature circuit breaker B16 26
Max. number of luminaires per miniature circuit breaker C10 28
Max. number of luminaires per miniature circuit breaker C16 42
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver
Photometrical data
Luminous flux 4640 lm / 3900 lm / 3460 lm / 2810 lm / 2260 lm
Luminous efficacy 164 lm/W / 163 lm/W / 162 lm/W / 161 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching < 4 sdcm
Low flicker Yes
Flickering metric (Pst LM) < 1
Stroboscope effect metric (SVM) < 0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 120 °
Adjustable attributes
Nominal wattage Color temperature Luminous flux Luminous efficacy
28,3 W 4000 K 4640 lm 164 lm/W
24 W 4000 K 3900 lm 163 lm/W
21,4 W 4000 K 3460 lm 162 lm/W
17,3 W 4000 K 2810 lm 162 lm/W
14 W 4000 K 2260 lm 161 lm/W
Dimensions & Weight
Length 1200.00 mm
Height 68.00 mm
Width 82.00 mm
Product weight 1580.00 g
Materials & Colors
Product color Gray
Housing color Gray
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -25…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Screwless terminal, 5-Pole
Type of protection IP65
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Suspended/Surface
Mounting location Ceiling
Application environment Indoor
With light source Yes
Replaceable light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Lifespan L90/B10 at 25 °C 61000 h
Number of switching cycles 100000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
Output current 200 mA
ECG - Output ripple current < 5 %
Emergency lighting
Type of Emergency Lighting (EL) EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test None
Certificates & Standards
Standards CE, UKCA, EAC, ENEC
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
Replaceable light source (EPREL) Only by an expert
Additional product data
Product remark When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime
Added function EVERLOOP, MULTI SELECT
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (3147-75-9)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854480621 Folding box
1		 72 mm x 87 mm x 1,218 mm 1734.00 g 7.63 dm³
4099854480638 Shipping box
6		 1,238 mm x 196 mm x 256 mm 11006.00 g 62.12 dm³
Product image Product name Product brand Product component type GTIN
LISOEV 1145X26 46 29W 840 S120 AL LEDVANCE LIGHT SOURCE direct 4099854416750
DR DS-P -40/220-240/475 L NSV LEDVANCE driver direct 4099854258497
User instruction / safety instructions
DAMP PROOF HE 5TH IP65
PDF (4.14 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Legal information
Safety Insert G11205497
PDF (178.17 KB)
Legal information
LSI DAMP PROOF HE THROUGHWIRING
PDF (2.27 MB)
Legal information
Legal Insert DP HE
PDF (908.79 KB)
Declarations of conformity
DP HE
PDF (225.08 KB)
Certificates
ENEC DAMP PROOF HE ON OFF DALI 5TH
PDF (0 B)
EPD
EPD EN DAMP PROOF HE
PDF (0 B)

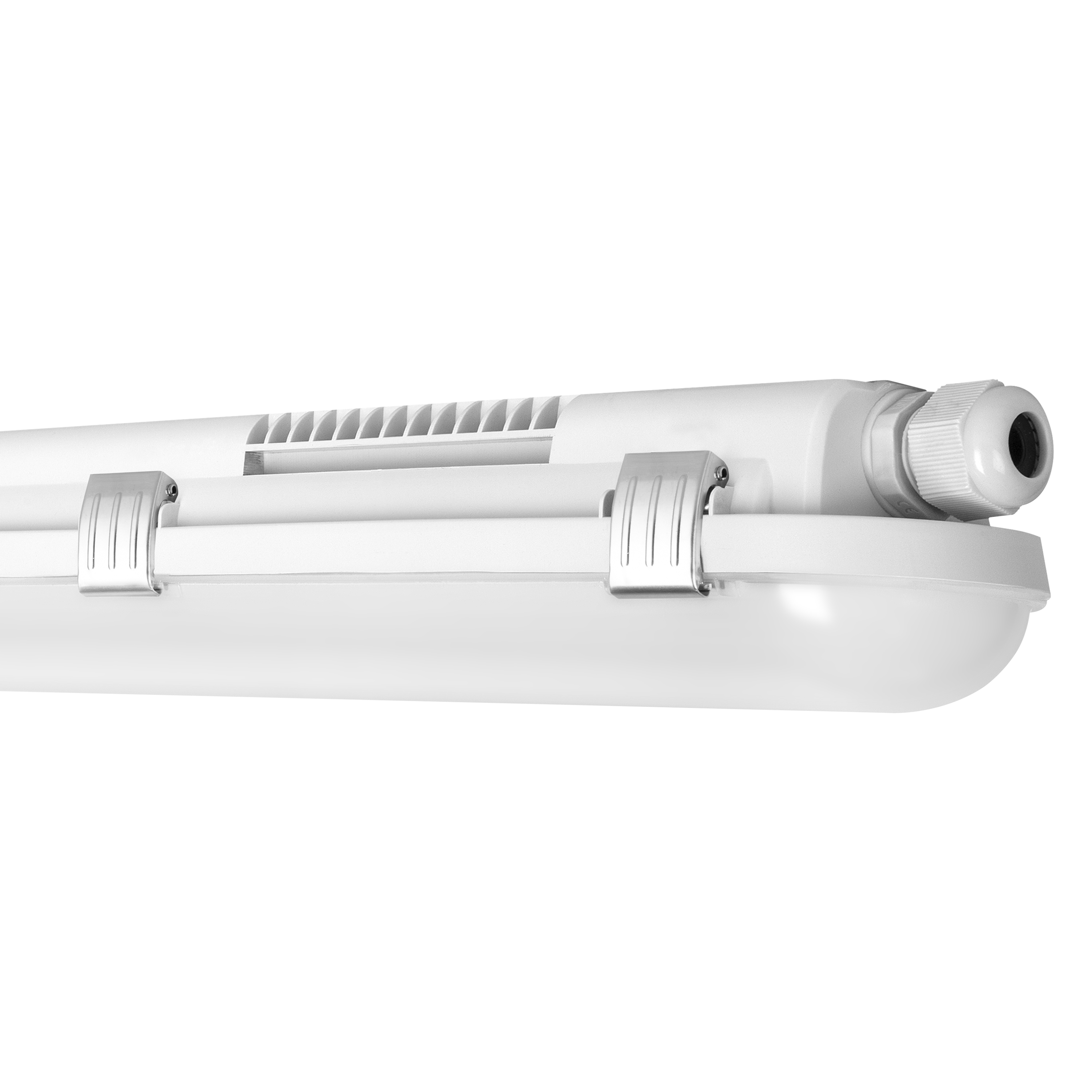

Product image: white background, diagonal
DP HE 1200 P
JPG (884.82 KB)

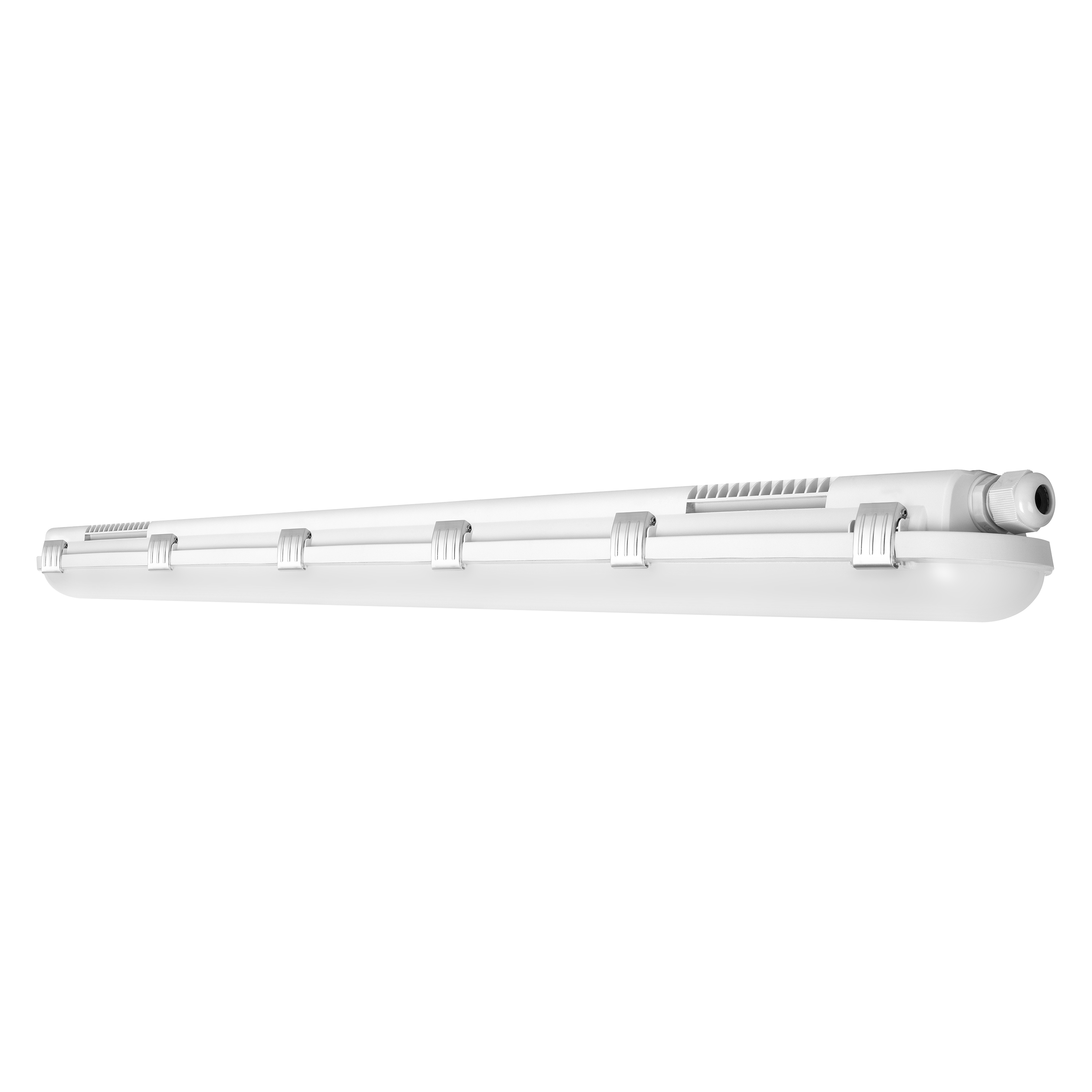

Product image: white background, diagonal, alternative image
DP HE 1200 P
JPG (837.82 KB)

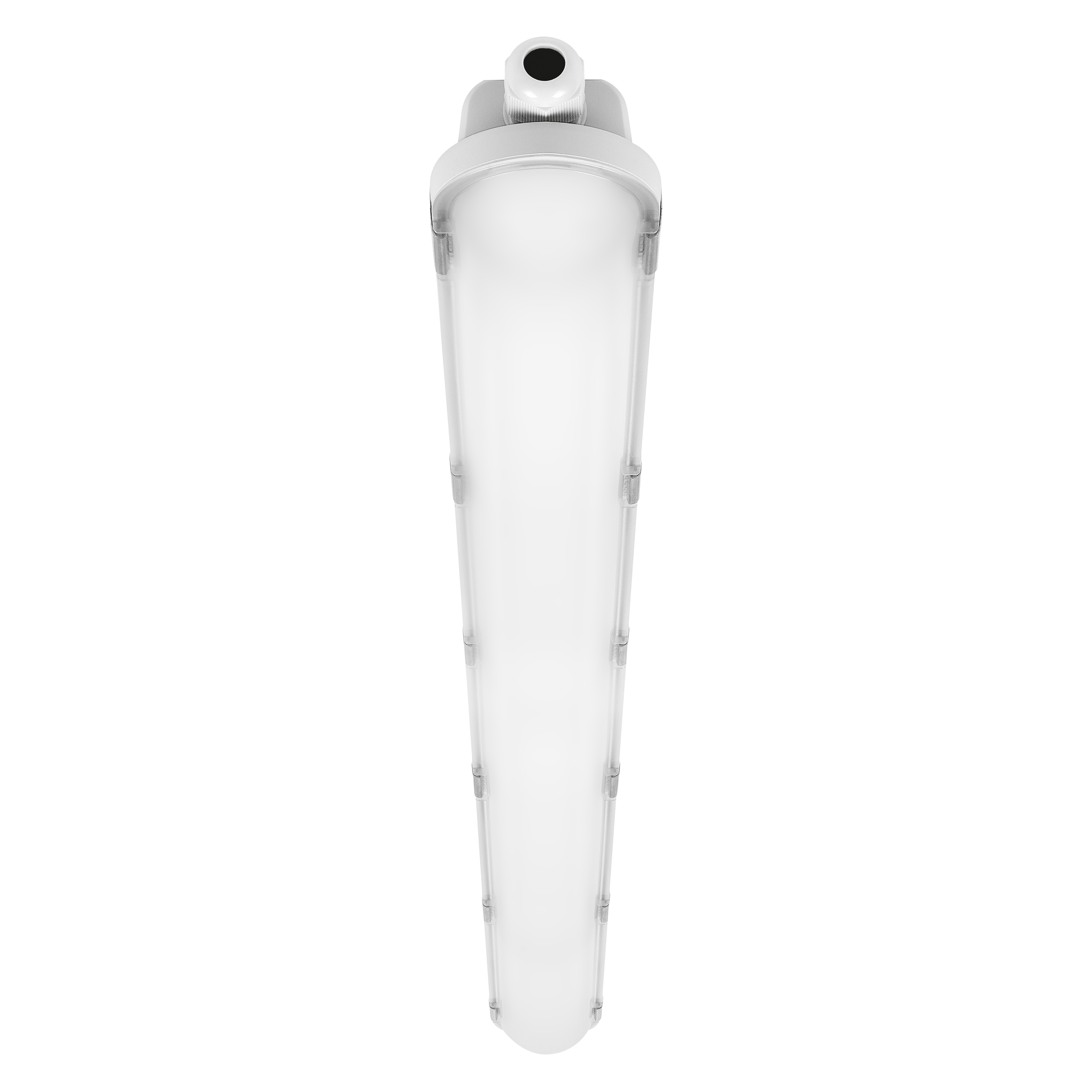

Product image: white background, diagonal, alternative image
DP HE 1200 P
JPG (1.14 MB)

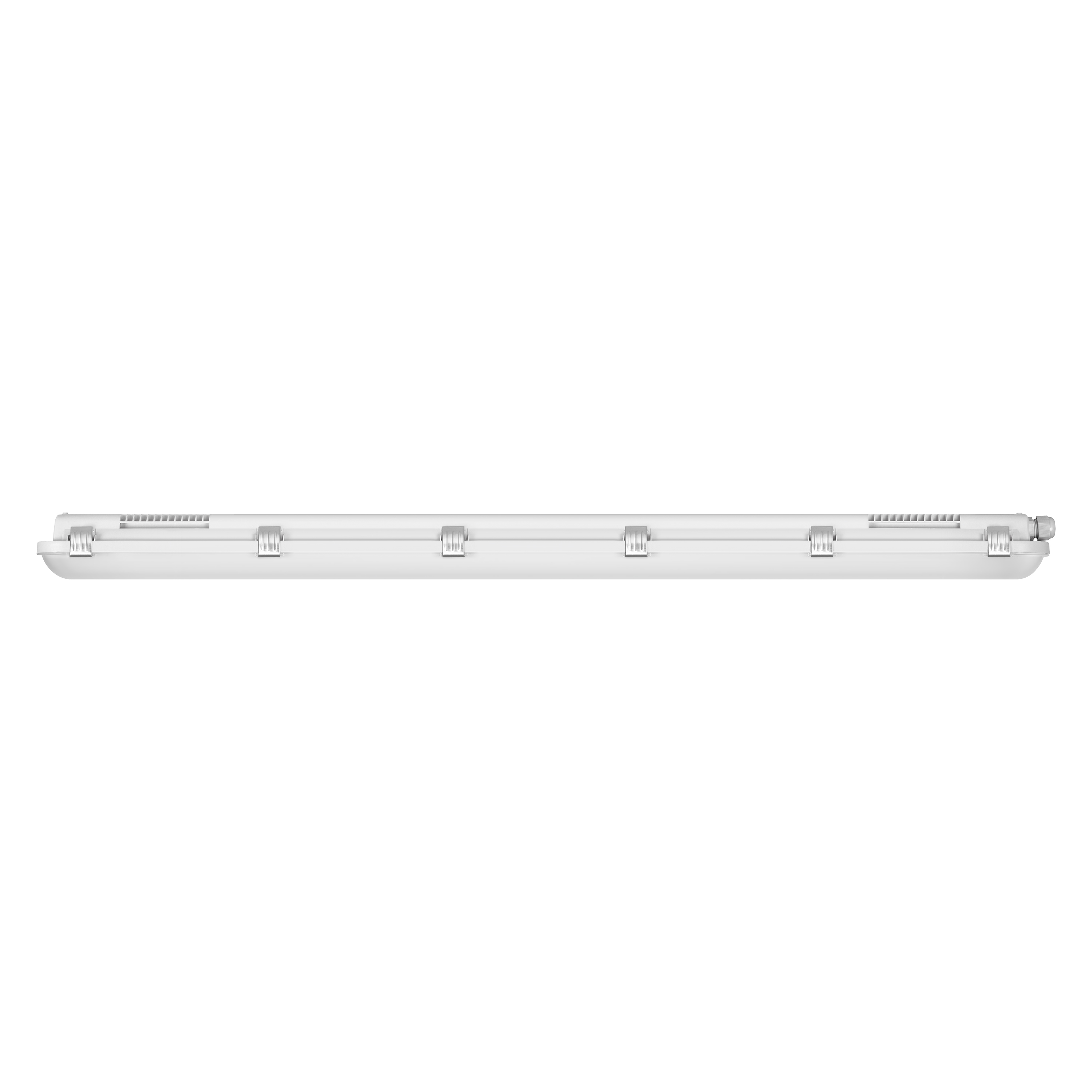

Product image: white background, horizontal
DP HE 1200 P
JPG (729.4 KB)

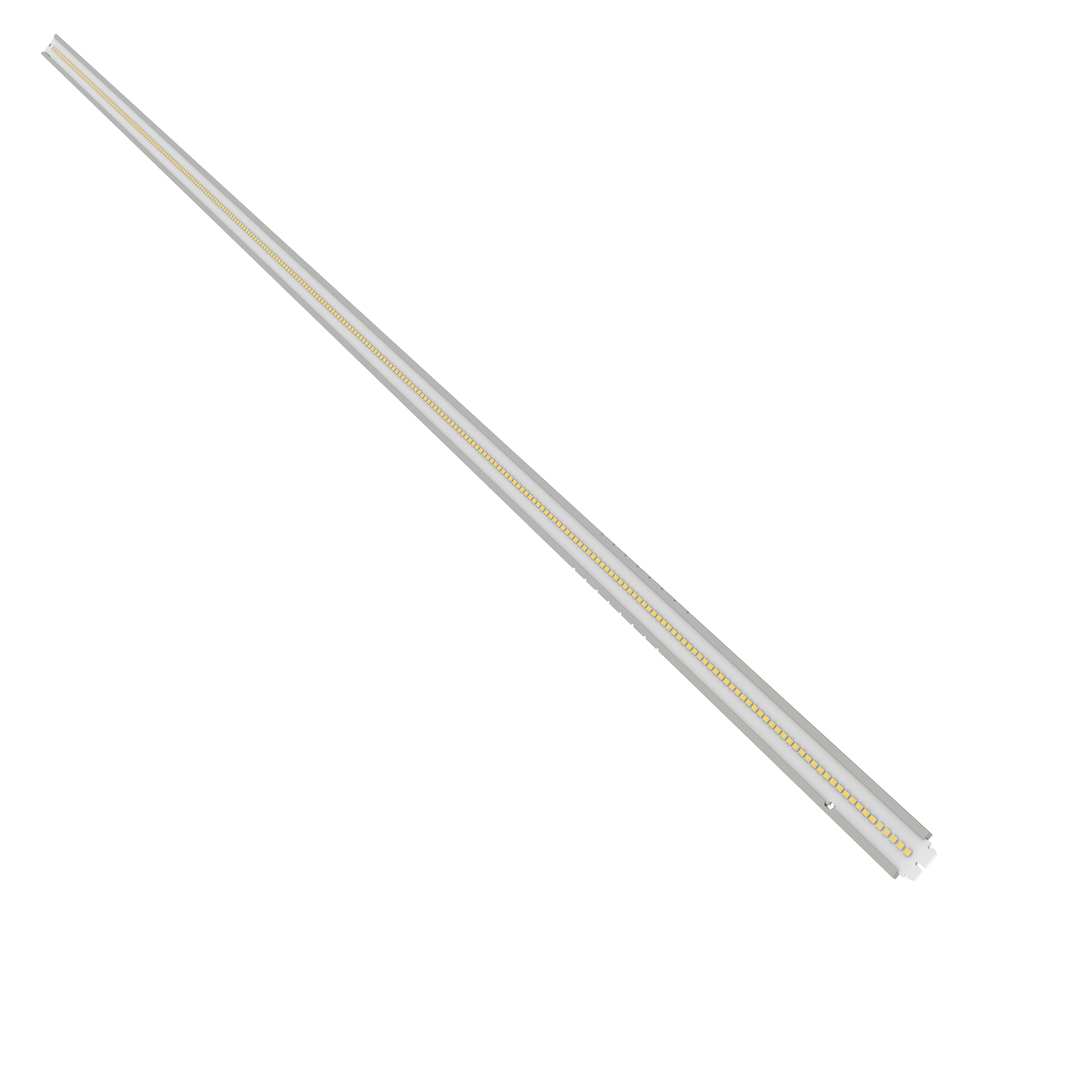

Product image: white background, internal view
Damp Proof High Efficiency Everloop
PNG (2.1 MB)
Product image: white background, internal view
Damp Proof High Efficiency & Flex Everloop
PNG (6.19 MB)
Product line drawing with letters
DP S 1200 32W 840 IP65 GY
SVG (26.11 KB)
Product line drawing with numbers
DP S 1200 32W 840 IP65 GY
SVG (33.25 KB)
Product line drawing, front, no dimensions
DP S 1200 32W 840 IP65 GY
SVG (21.37 KB)
IES file (IES)
DP HE 5TH 1200 P 29W ML 840 IP65
IES (14.43 KB)
LDT file (Eulumdat)
DP HE 5TH 1200 P 29W ML 840 IP65
LDT (11.45 KB)
ULD file (DIALux)
DP HE 5TH 1200 P 29W ML 840 IP65
ULD (456.7 KB)
ROLF file (RELUX)
DP HE 5TH 1200 P 29W ML 840 IP65
ROLF (301.08 KB)
UGR file (UGR table)
DP HE 5TH 1200 P 29W ML 840 IP65
PNG (61.94 KB)
Light distribution curve type cone
DP HE 5TH 1200 P 29W ML 840 IP65
SVG (16.77 KB)
Light distribution curve type polar
DP HE 5TH 1200 P 29W ML 840 IP65
SVG (19.99 KB)
BIM Revit 3D
DP HE
ZIP (9.63 MB)
CAD STEP 3D
DP Gen2 1200
STEP (491.58 KB)
Application pictures
Industrial Factory with Damp Proof High Efficiency
JPG (0 B)
EAN SEG number STK number EFO number ELDAS number
4099854480621 7220598 4325377 3341704 941006900
