EMERGENCY BULKHEAD RECTANGULAR

EM BULKHEAD E 1.3W 3H EM/AC AT

GTIN: 4099854230677 Folding box / 1 Show all packages

Download data sheet

Our warranty conditions

Tools

Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits

Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
Easy maintenance with automatic test function or integrated test switch
Emergency pictograms included in packaging

Areas of application

Antipanic lighting
Industry
Corridors, stairways, entrance areas

Product features

Luminous flux: 200 lm
Type of protection: IP65
Battery discharge time: 3 h
Battery technology: LiFePO4
Function test: manual (MA) or automatic (AT)
With integrated test switch for manual testing
Operation mode: maintained (M) or non-maintained (NM)

Safety advice

All electrical connections must be made by a qualified person.
Caution, risk of electric shock.

References / Links

For Guarantee see www.ledvance.com/guarantee

Electrical data

Nominal wattage	1.30 W
Nominal voltage	220…240 V
Mains frequency	50/60 Hz
Nominal current	42.000 mA
Inrush current	6.8 A
Inrush current time T_h50	48 µs
Max. number of luminaires per miniature circuit breaker B16	110
Max. number of luminaires per miniature circuit breaker C10	88
Max. number of luminaires per miniature circuit breaker C16	141
Power factor λ	0.3
Protection class	II
Operating mode	Integrated LED driver

Photometrical data

Luminous flux	200 lm
Luminous efficacy	150 lm/W
Color temperature	5700 K
Light color (designation)	Cool Daylight
Color rendering index Ra	> 80
Standard deviation of color matching	6 sdcm
Low flicker	Yes
Flickering metric (Pst LM)	< 1
Stroboscope effect metric (SVM)	≤ 0,4
Photobiological safety group acc. to EN62778	RG0
Beam angle	100 ° x 120 °

Dimensions & Weight

Length	355.00 mm
Height	63.00 mm
Width	115.00 mm
Product weight	510.00 g

Materials & Colors

Product color	White
Housing color	White
Body material	Polycarbonate (PC)\|Acrylonitrile butadiene styrene (ABS)
Cover material	Polycarbonate (PC)/ Acrylonitrile Butadiene Styrene (ABS)
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	0…+45 °C
Temperature range at storage	0…+35 °C
Type of connection	Terminal
Type of protection	IP65
Protection class IK (shock resistance)	IK06
Dimmable	No
Mounting type	Surface
Mounting location	Ceiling, Wall
Application environment	Indoor
Mounting depth	0 mm
Adjustable	No
With light source	Yes
Replaceable light source	No

Lifespan

Number of switching cycles

50000

Control gear

Output current	460 mA
ECG - Output ripple current	8 %

BATTERY

Type of Battery	LiFePO4
Battery size [GMS]	Others
Nominal voltage of battery	3.2 V
Nominal capacity of battery	1800 mAh
Battery charging time	24 h

Emergency lighting

Type of Emergency Lighting (EL)	EL unit (battery and controller) for decentral operation included
Area of emergency application	Escape route lighting, Anti-panic lighting
Type of emergency light operation	Maintained, Non-maintained
Type of emergency operation test	Automatic
Wattage in emergency operation mode	1.3 W
Luminous flux in emergency operation mode	200 lm
Battery life in emergency operation mode	3 h
Integrated test switch	Yes

Certificates & Standards

Standards	CE, CB, EAC, UKCA, ENEC
Luminaire with limited surface temperature, "D sign"	No
Ball shot safe	No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854230677	Folding box 1	115 mm x 70 mm x 360 mm	596.00 g	2.90 dm³
4099854230684	Shipping box 10	605 mm x 375 mm x 155 mm	6460.00 g	35.17 dm³

User instruction / safety instructions
EM BULKHEAD E 1.3W 3H EM/AC AT LEDV

Legal information
Informationstext 18 Abs 4 ElektroG

PDF (435.15 KB)

Legal information
EM BULKHEAD E 1.3W 3H EM/AC AT LEDV

Legal information
Safety Insert G11218810

PDF (244.72 KB)

Legal information
Legal Insert G11231524

PDF (768.75 KB)

Declarations of conformity
EM BULKHEAD E 1.3W 3H EM/AC AT

PDF (142.87 KB)

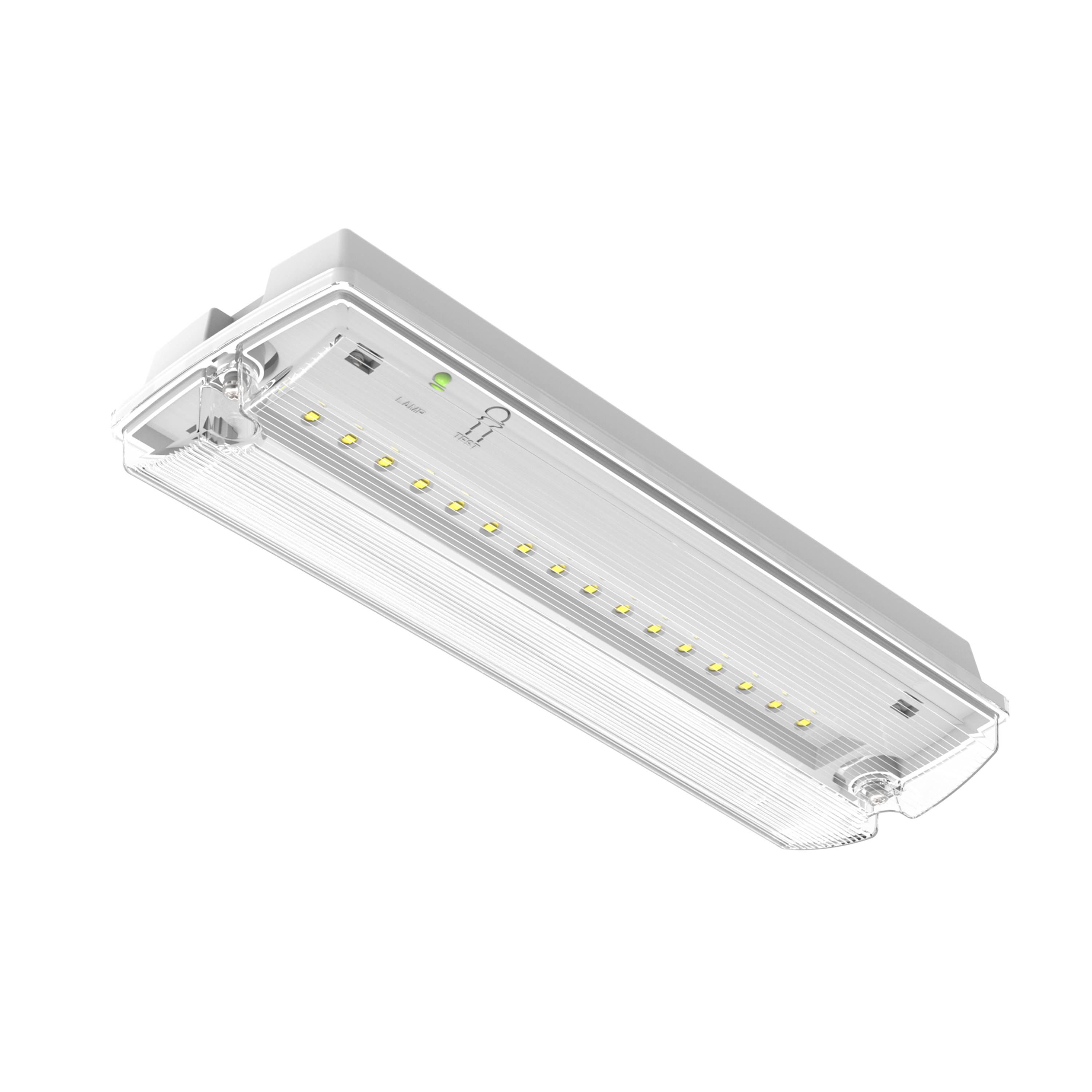

Product image: white background, diagonal
EM BULKHEAD E 1,3W 3H EM/AC AT

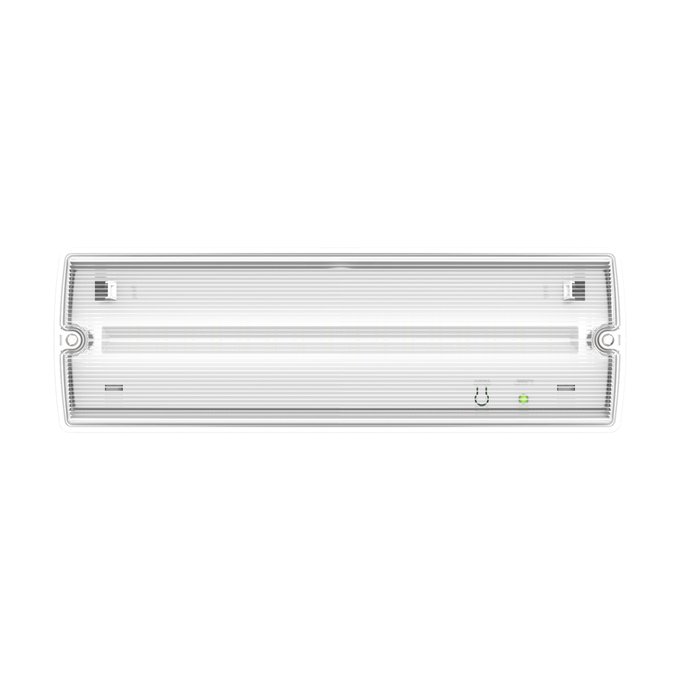

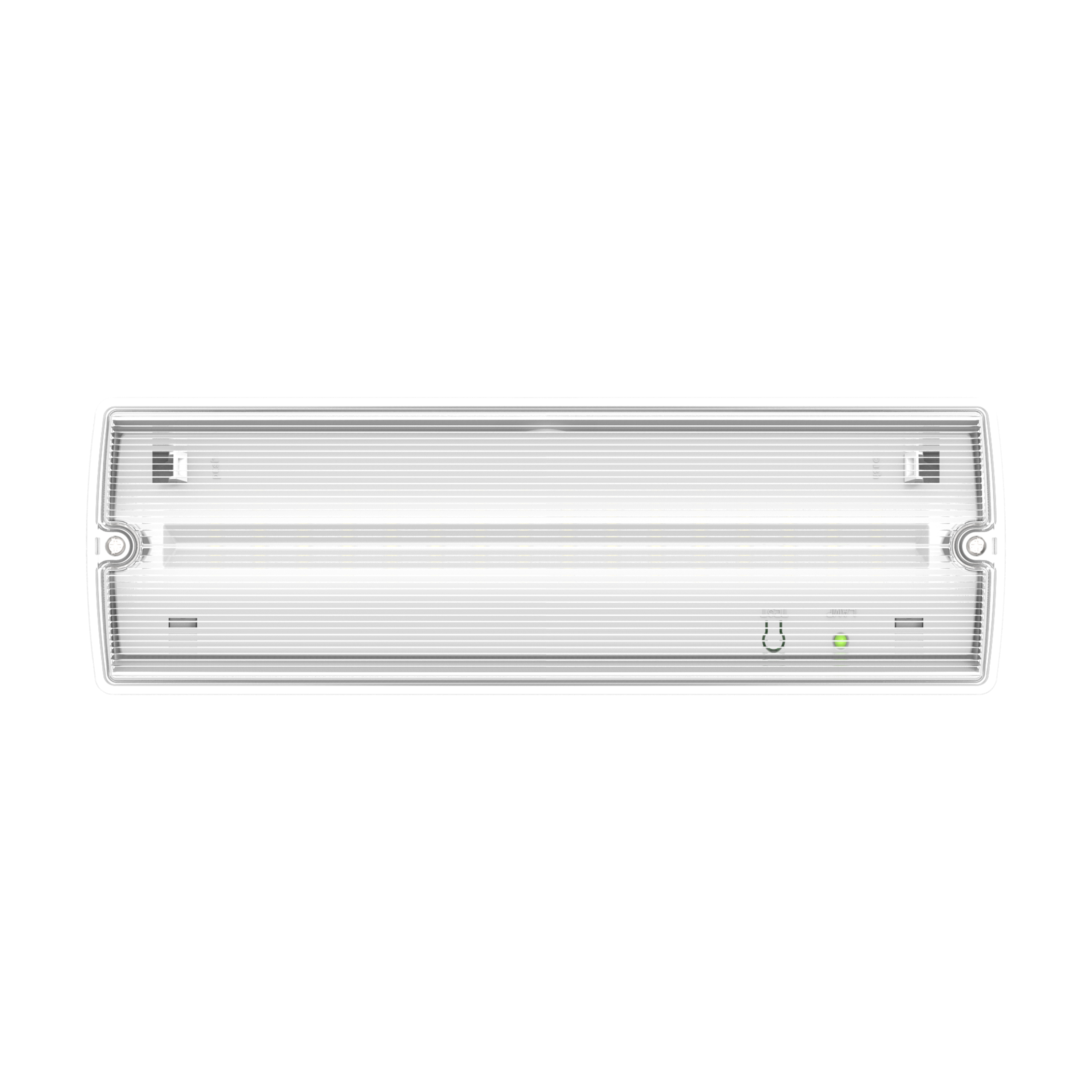

Product image: white background, horizontal
EM BULKHEAD E 1,3W 3H EM/AC AT

Product line drawing with letters
EM BULKHEAD E 1.3W 3H EM/AC AT

Product line drawing with numbers
EM BULKHEAD E 1.3W 3H EM/AC AT

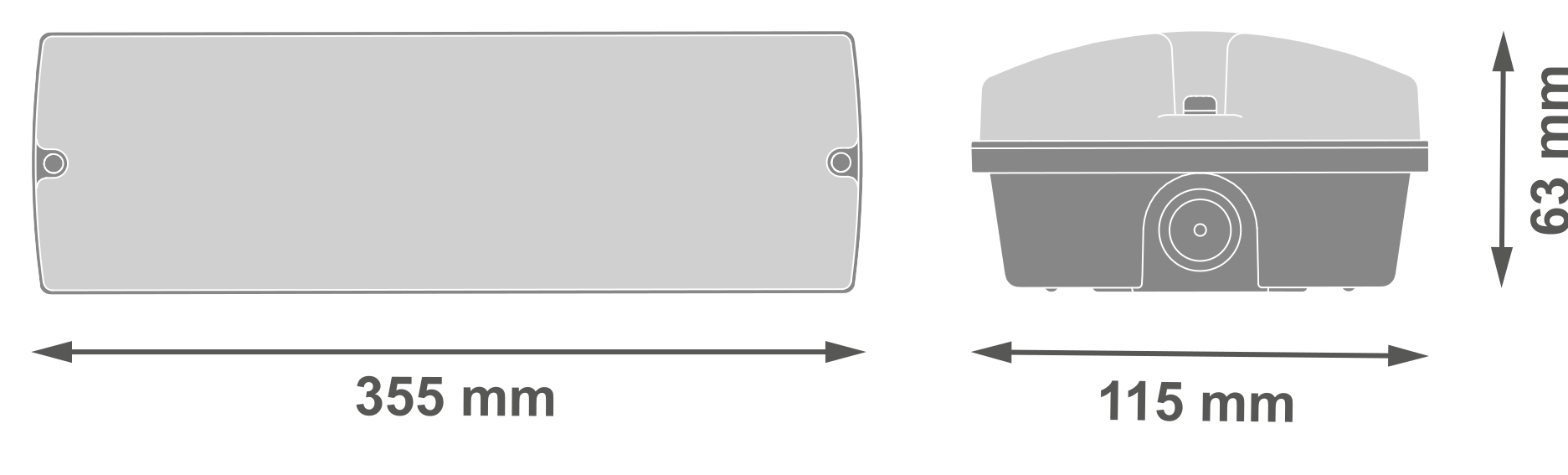

Product line drawing - technical
