PANEL IndiviLED 625 ZIGBEE
PANEL INDV 625 33W 4000 K ZBVR
GTIN: 4058075521865
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Suitable luminaire for VIVARES and other Zigbee 3.0 Light Management Systems
- Homogenous light distribution and reduced glare thanks to the IndiviLED® optics
- Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
- Robust structure with IK08
- Low flicker light thanks to special electronic control gear
- 5 years guarantee
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Corridors
- Offices
- Conference rooms
- Reception areas
- Foyers
- Elevators
- Suitable for recessed ceiling systems with grid size of 625 x 625 mm
Product features
- IoT-ready luminaire with Zigbee 3.0 technology
- Each LED with individual lens and reflector for UGR < 16 and homogenous light distribution
- Lifetime (L80/B50): up to 50,000 h (at 25 °C)
- Metal housing, polycarbonate (PC) lenses and reflectors
- Luminous flux: up to 4,000 lm
- Luminous efficacy: up to 120 lm/W
- Initial color consistency: 3 SDCM
- Glow Wire Test according to IEC 60695-2-12: 850 °C
Equipment / Accessories
- Accessories for several mounting options available
- Security rope for luminaire included
- External control gear included
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 33.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 180.000 mA |
| Inrush current | 30 A |
| Inrush current time Th50 | 200 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 11 |
| Max. number of luminaires per miniature circuit breaker C10 | 10 |
| Max. number of luminaires per miniature circuit breaker C16 | 16 |
| Power factor λ | ≥0.90 |
| Total harmonic distortion | ≤ 10 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 4000 lm |
| Luminous efficacy | 120 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | 3 sdcm |
| Luminous intensity | - |
| Low flicker | Yes |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 70 ° |
| UGR | < 16 |
Dimensions & Weight
| Length | 620.00 mm |
| Height | 13.00 mm |
| Width | 620.00 mm |
| Product weight | 3600.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+45 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP40/IP20 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | Yes |
| Type of dimming | ZIGBEE |
| IoT ready | Support of DALI data type PART 251, 252, 253 1) |
| Mounting type | Surface/Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting length | 600,0 mm |
| Mounting width | 600,0 mm |
| Mounting depth | 50,0 mm |
| With light source | Yes |
| Replaceable light source | No |
1) Internet of Things. Supports data transfer via gateway to cloud-based monitoring platforms, such as LEDVANCE VIVARES Cloud
Lifespan
| Lifespan L70/B50 at 25 °C | 80000 h 1) |
| Lifespan L80/B10 at 25 °C | 60000 h 1) |
| Lifespan L90/B10 at 25 °C | 35000 h |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 750 mA |
| ECG - Output ripple current | ≤ 5 % |
Certificates & Standards
| Standards | CE, CB, ENEC, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Added function | VIVARES |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075521865 | Folding box 1 |
668 mm x 723 mm x 38 mm | 4024.00 g | 18.35 dm³ |
| 4058075521872 | Shipping box 3 |
685 mm x 135 mm x 735 mm | 12998.00 g | 67.97 dm³ |
| Product image | Product name | Product brand | Product component type | GTIN |
|---|---|---|---|---|
|
VIVARES ZB CONTROL | LEDVANCE | Light control | 4058075427488 |
|
VIVARES ZB L/O SENS 220-240 | LEDVANCE | Light control | 4058075446182 |
|
VIVARES ZB O SENS 220-240 | LEDVANCE | Light control | 4058075544222 |
|
VIVARES ZB COUPLER | LEDVANCE | Light control | 4058075463806 |
|
VIVARES ZB SENS ADAPTER | LEDVANCE | Light control | 4058075650107 |
User instruction / safety instructions
PANEL IndiviLED 600/625 ZBVR
PANEL IndiviLED 600/625 ZBVR
Extended installation guide
Quick Installation Guide VIvares Zigbee
Quick Installation Guide VIvares Zigbee
Legal information
LSI PANEL INDV EM
LSI PANEL INDV EM
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
PL INDV 33W 4000K ZBVR
PL INDV 33W 4000K ZBVR
Product image: white background, diagonal
PANEL INDV
PANEL INDV
Product image: white background, horizontal
PANEL INDV
PANEL INDV
Product image: white background, spacial
PANEL INDV
PANEL INDV
Product line drawing with numbers
PANEL INDV 625 33W
PANEL INDV 625 33W

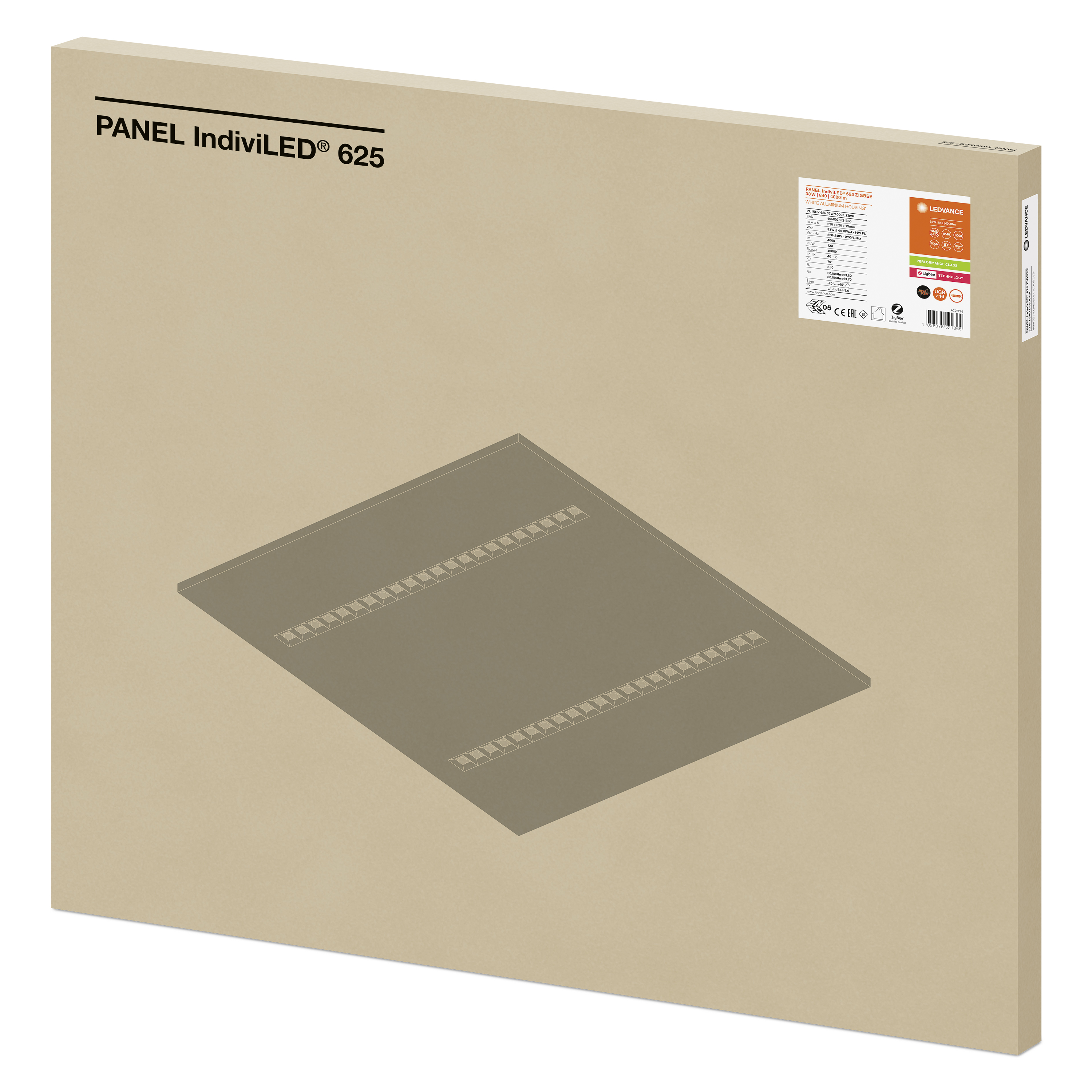

Packaging image, spacial
Panel IndiviLED 625 MiCh
Panel IndiviLED 625 MiCh
IES file (IES)
PL INDV 625 33W4000K ZBVR
PL INDV 625 33W4000K ZBVR
LDT file (Eulumdat)
PL INDV 625 33W4000K ZBVR
PL INDV 625 33W4000K ZBVR
ULD file (DIALux)
PL INDV 625 33W-4000K
PL INDV 625 33W-4000K
ROLF file (RELUX)
PL INDV 625
PL INDV 625

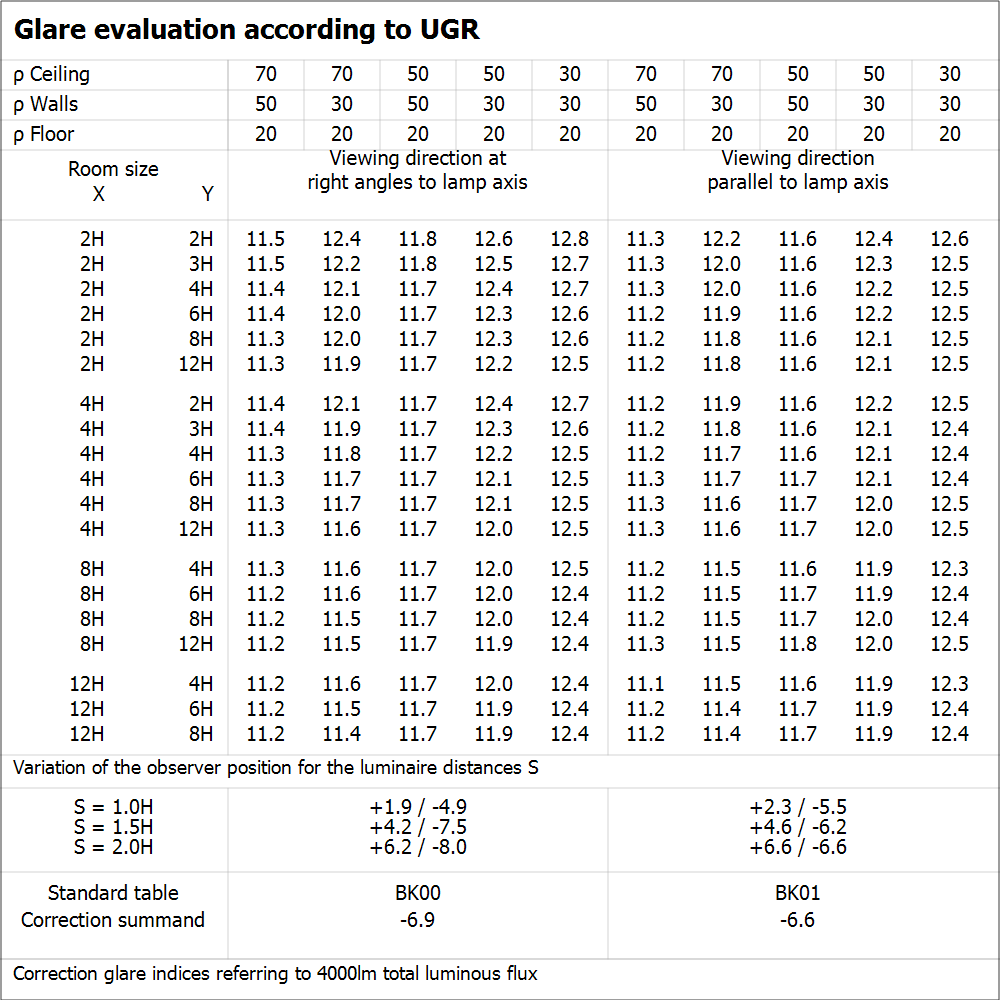

UGR file (UGR table)
